  • #16
    Another few updates, in case it helps with debugging for anyone else (I don't have a solution, just some observations that I'm seeing as I try to figure it out).

    Problem: Sending email
    We aren't able to send emails from the interface (autoresponders and system-generated emails (e.g., mentions) are working fine). I'm attaching a few screenshots:

    The payload is fine - and so is the response.

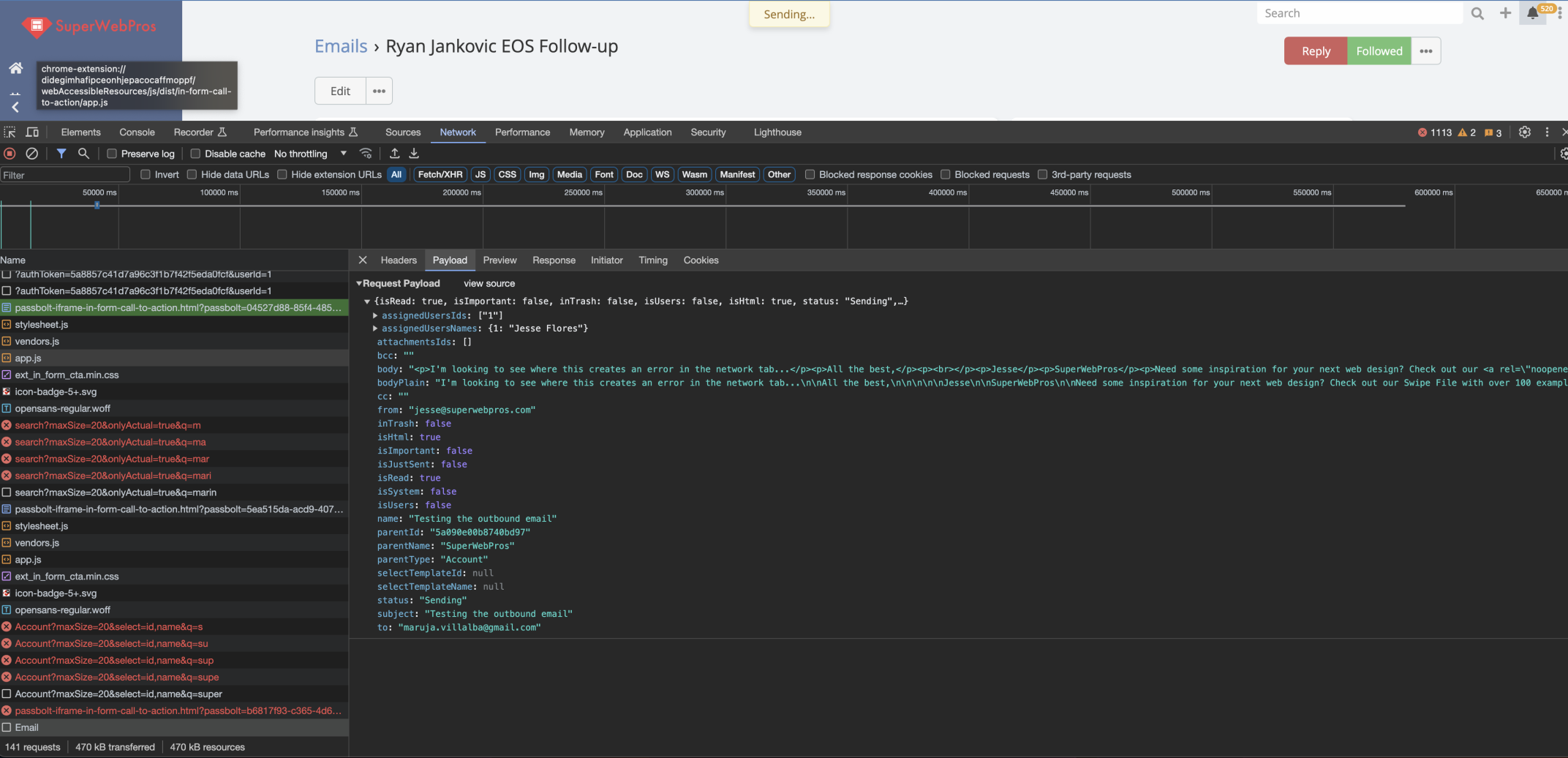

    Payload:

    Click image for larger version

Name:	CleanShot 2023-10-16 at 15.38.16@2x.png
Views:	264
Size:	457.6 KB
ID:	98662
    Response:
    Click image for larger version

Name:	CleanShot 2023-10-16 at 15.39.08@2x.png
Views:	184
Size:	362.5 KB
ID:	98663​However the "Sending" notification stays glued to the stop and it never seems to send.

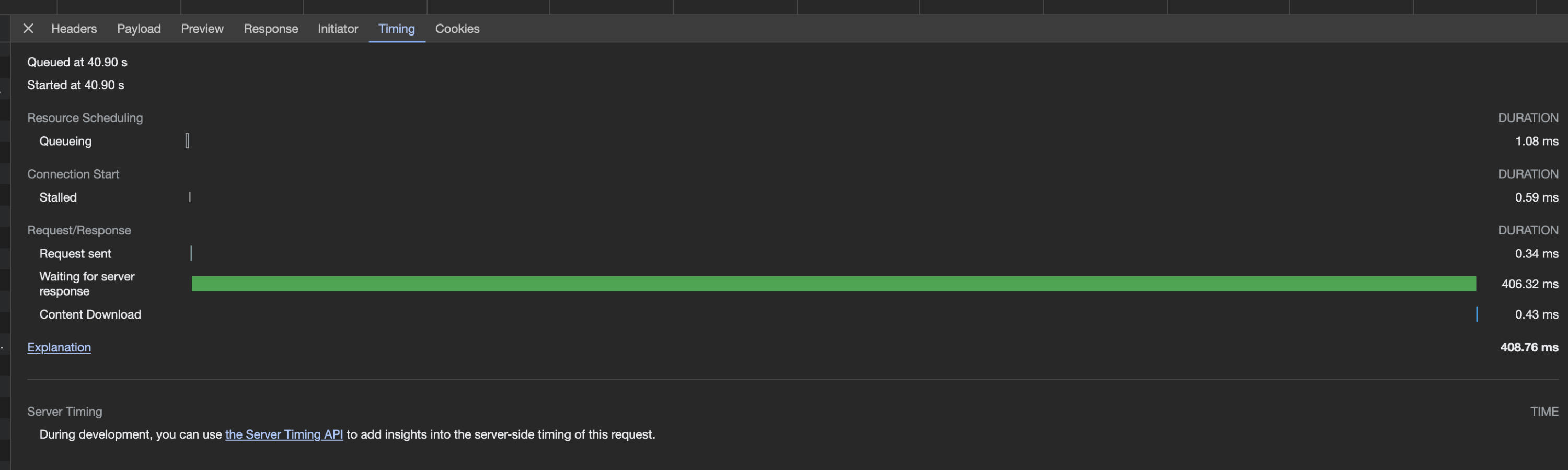

    The "Timing" tab shows only a 400ms response to server, so it seems that somewhere along the line it's not making it's way to the smtp transport.

    Click image for larger version

Name:	CleanShot 2023-10-16 at 15.41.12@2x.png
Views:	182
Size:	172.8 KB
ID:	98664

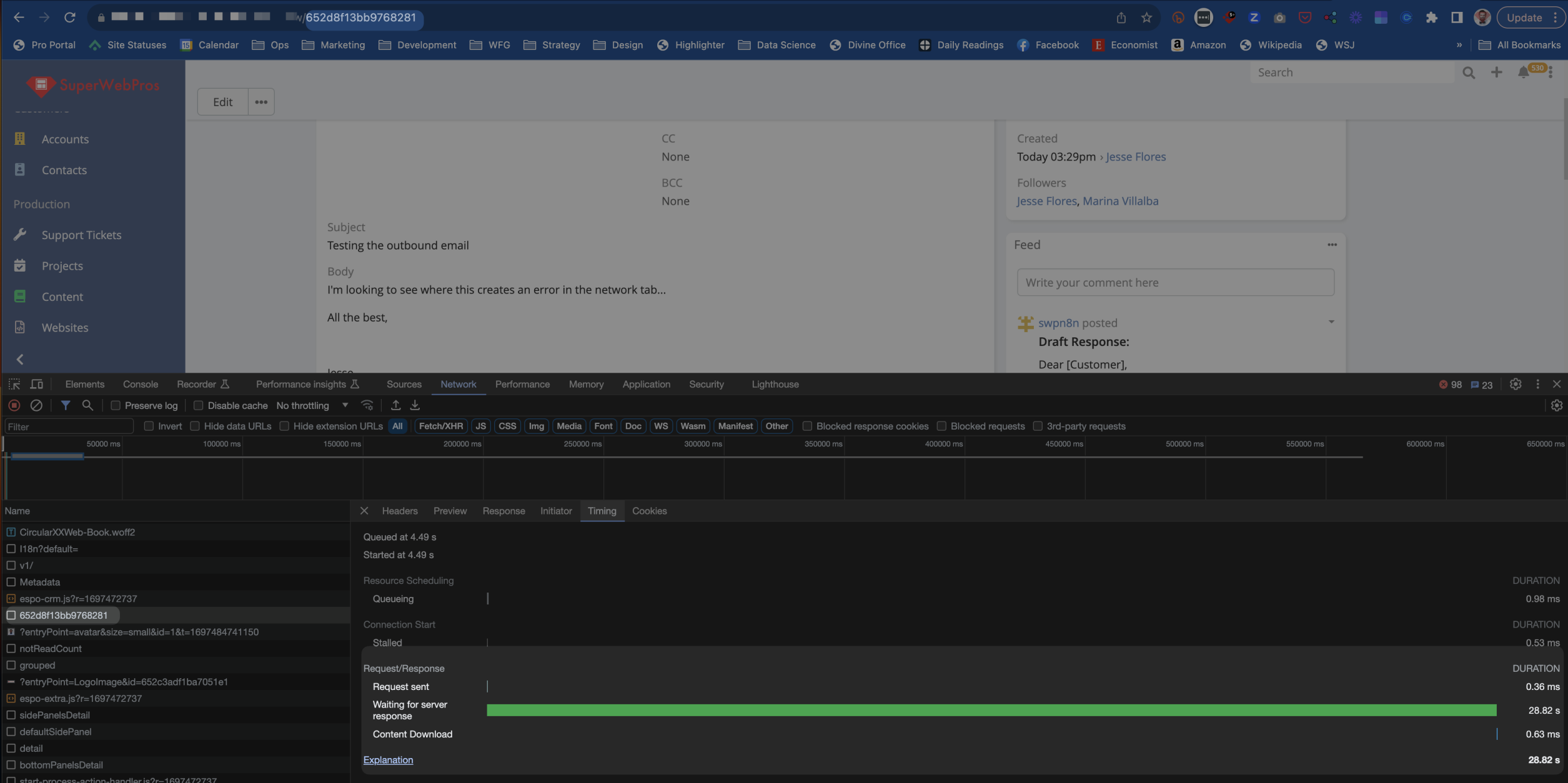

    The Response Object
    The response object _does_ eventually make it into the database and is (after about 30 seconds) available to the client, inside the application. At no point does the email actually send.

    Click image for larger version

Name:	CleanShot 2023-10-16 at 15.41.42@2x.png
Views:	189
Size:	383.4 KB
ID:	98665

    Comment


    • jflores
      jflores commented
      Editing a comment
      Updates:

      - I set up the app on a local environment (docker-compose, but with the custom && client/custom fields from production) and imported the same database. Performance on local is just as slow as performance on production (30+ second queries, emails not sending).
      - I went into mysql and ran optimize table command on email && email related tables. No improvement.
      - I turned on slow query logging and clicked on one of the emails in the system. This is the query:

      Code:
      # Query_time: 14.541477  Lock_time: 0.000011 Rows_sent: 1  Rows_examined: 221855
      use swp_espocrm;
      SET timestamp=1697506170;
      SELECT email.id AS `id`, email.name AS `name`, email.deleted AS `deleted`, email.from_string AS `fromString`, email.reply_to_string AS `replyToString`, email.address_name_map AS `addressNameMap`, email.is_replied AS `isReplied`, email.message_id AS `messageId`, email.message_id_internal AS `messageIdInternal`, email.body_plain AS `bodyPlain`, email.body AS `body`, email.is_html AS `isHtml`, email.status AS `status`, email.has_attachment AS `hasAttachment`, email.date_sent AS `dateSent`, email.delivery_date AS `deliveryDate`, email.created_at AS `createdAt`, email.modified_at AS `modifiedAt`, email.is_system AS `isSystem`, email.ics_contents AS `icsContents`, email.ics_event_uid AS `icsEventUid`, email.from_email_address_id AS `fromEmailAddressId`, fromEmailAddress.name AS `fromEmailAddressName`, email.parent_id AS `parentId`, email.parent_type AS `parentType`, email.created_by_id AS `createdById`, NULLIF(TRIM(CONCAT(IFNULL(createdBy.first_name, ''), ' ', IFNULL(createdBy.last_name, ''))), '') AS `createdByName`, email.sent_by_id AS `sentById`, NULLIF(TRIM(CONCAT(IFNULL(sentBy.first_name, ''), ' ', IFNULL(sentBy.last_name, ''))), '') AS `sentByName`, email.modified_by_id AS `modifiedById`, NULLIF(TRIM(CONCAT(IFNULL(modifiedBy.first_name, ''), ' ', IFNULL(modifiedBy.last_name, ''))), '') AS `modifiedByName`, email.assigned_user_id AS `assignedUserId`, NULLIF(TRIM(CONCAT(IFNULL(assignedUser.first_name, ''), ' ', IFNULL(assignedUser.last_name, ''))), '') AS `assignedUserName`, email.replied_id AS `repliedId`, replied.name AS `repliedName`, email.created_event_id AS `createdEventId`, email.created_event_type AS `createdEventType`, email.group_folder_id AS `groupFolderId`, groupFolder.name AS `groupFolderName`, email.account_id AS `accountId`, account.name AS `accountName`, emailUser.is_read AS `isRead`, emailUser.is_important AS `isImportant`, emailUser.in_trash AS `inTrash`, emailUser.folder_id AS `folderId` FROM `email` AS `email` USE INDEX (`IDX_DATE_SENT`) LEFT JOIN `account` AS `account` ON email.account_id = account.id LEFT JOIN `group_email_folder` AS `groupFolder` ON email.group_folder_id = groupFolder.id LEFT JOIN `email_address` AS `fromEmailAddress` ON email.from_email_address_id = fromEmailAddress.id LEFT JOIN `email` AS `replied` ON email.replied_id = replied.id LEFT JOIN `user` AS `sentBy` ON email.sent_by_id = sentBy.id LEFT JOIN `user` AS `assignedUser` ON email.assigned_user_id = assignedUser.id LEFT JOIN `user` AS `modifiedBy` ON email.modified_by_id = modifiedBy.id LEFT JOIN `user` AS `createdBy` ON email.created_by_id = createdBy.id LEFT JOIN `email_user` AS `emailUser` ON emailUser.email_id = email.id AND emailUser.deleted = 0 AND emailUser.user_id = '1' WHERE email.id = '65187eb0cfacda24f' AND email.deleted = 0 ORDER BY email.date_sent DESC, email.id DESC LIMIT 0, 1;
      When run from both the app and mysql itself, it takes about 14-20 seconds.

      My database is ~10GB

      I also:

      1. Updated my settings in mysqld.conf
      Code:
      [mysqld]
      innodb_buffer_pool_size = 6G
      innodb_log_file_size = 256M
      2. Analyzed related tables for query planner
      Code:
      ANALYZE TABLE email, account, group_email_folder, email_address, user, email_user;
      What ChatGPT noticed about the query:

      I've noticed the query has a few potential performance bottlenecks:

      1. **Joins**: The query joins multiple tables, which increases the complexity and time taken, especially if the tables have a large number of rows.

      2. **Functions**: The query uses functions like `TRIM` and `CONCAT`, which, when applied to a lot of rows, can be expensive.

      3. **Order By**: `ORDER BY email.date_sent DESC, email.id DESC` – This sorts the entire result set. Depending on the number of records in the email table, this could be costly.

      Let's tackle each point and consider potential optimizations:

      1. **Optimize Joins**:
      - Ensure that fields used in the JOIN conditions are indexed. For instance, `email.account_id = account.id` suggests that `account.id` and `email.account_id` should be indexed. Based on the indexes you showed earlier, they seem to be indexed, but it's good to double-check for all join conditions.

      2. **Limit the use of Functions**:
      - If possible, move functions like `TRIM` and `CONCAT` to the application side rather than the database. This might not be feasible depending on the application, but it's a general optimization technique.

      3. **Reconsider the `ORDER BY` clause**:
      - The query uses an index on `date_sent`, which is good. However, since the `WHERE` clause is filtering by `email.id`, consider whether sorting by `date_sent` and then `id` is necessary. If you're only fetching one record based on a unique `id`, the sorting might be superfluous.
      Last edited by jflores; 10-17-2023, 02:09 AM.

    • yuri
      yuri commented
      Editing a comment
      This ChatGPT recommendations is nonsense for our particular case. For information, the same query is running super fast with 250,000 records in the table.

    • jflores
      jflores commented
      Editing a comment
      Yes, i was skeptical of it too, but I also didn't want to have to dig deeper into selectmanagers or queries than I wanted to. I did want to keep the note, though, in case I had to go to that route.

      In the end, migrating to MariaDB solved the problem. MySQL 8, for whatever reason, was garbage for us. Which is odd b/c MySQL 5.7 was working just fine.

      At this point, I'm considering moving the entire DB to Amazon RDS in order to use their performance, backups, replicability, etc. Databases drive me crazy.

  • #17
    I figured out the send issue. This post helped: https://forum.espocrm.com/forum/gene...-does-not-work

    there was a default status of “New” in my custom entitydefs- probably from v5 (I migrated 5.8 to 8).

    I updated the entitydef properties more like the current build, rebuilt the code, and it worked!

    Comment


    • #18
      This solution didn't help me. I don't have any custom settings in entityDefs for email.

      Comment


      • jflores
        jflores commented
        Editing a comment
        alexisc sorry for the confusion; I had 2 separate issues (at first I thought they were related):

        1. Slow email/timeouts -> I switched from mysql to mariadb and that fixed the problem.
        2. Couldn't send -> That turned out to be a problem with my entityDefs file.

        Hope that clarifies things!

    • #19
      This solution helped me. Thank you!

      EspoCRM – Open Source CRM Application. Contribute to espocrm/espocrm development by creating an account on GitHub.

      Comment


      • mwo300
        mwo300 commented
        Editing a comment
        This helped me too very much.
        I had the problem that i imap my e-mail back from 2013 to now. Once i tried opening an e-mail from 2022 or earlier i got a timeout. I was working with MariaDB already and the latest 8.1.4 Espo. Now i changed that and this did the job. E-Mails even from 2013 loading instantly.

    • #20
      I cant seem to track down why mine is slow. I'm already on MariaDB. I'll wait for v8.2 and try again
