Script Assistance: Pseudocode for Status Transition Validation

[arrestthepresident]

In my instance, I have a custom-entity with field "status." The field is a dropdown with the following values: "Draft," "Active," "Running Out," and "Inactive." I want to ensure that status transitions follow a specific order, namely from "Draft" to "Active" to "Running Out" to "Inactive."

I already defined Condition options for the frontend to not show the prior options, but it is still possible to update to a prior status, which i dont want to be.

To achieve this, I intended to use a Before-Save script. The script should check the old and new status values and prevent the save operation if the transition is not in the correct order.

Pseudocode Solution

Here's a pseudocode representation of the solution I've devised:

// Get the old and new statuses
oldStatus = entity.get("oldStatus")
newStatus = entity.get("status")

// Define the allowed status order
allowedStatusOrder = ["Draft", "Active", "Running Out", "Inactive"]

// Check if the transition is allowed
if oldStatus is not null and newStatus is not null:
oldStatusIndex = allowedStatusOrder.indexOf(oldStatus)
newStatusIndex = allowedStatusOrder.indexOf(newStatus)

// Check if the new status is in the correct order
if newStatusIndex > oldStatusIndex:
// The transition is allowed, save the changes
return
else:
// The transition is not allowed, display an error message
throwError("Invalid status transition. You can only transition in the order of 'Draft' to 'Active' to 'Running Out' to 'Inactive'.")

is this possible?

[shalmaxb]

Perhaps with the array formula:

https://docs.espocrm.com/administration/formula/array/#arrayremoveat

you could remove options by condition. Though I did not test it.

[rabii]

In my instance, I have a custom-entity with field "status." The field is a dropdown with the following values: "Draft," "Active," "Running Out," and "Inactive." I want to ensure that status transitions follow a specific order, namely from "Draft" to "Active" to "Running Out" to "Inactive."

I already defined Condition options for the frontend to not show the prior options, but it is still possible to update to a prior status, which i dont want to be.

To achieve this, I intended to use a Before-Save script. The script should check the old and new status values and prevent the save operation if the transition is not in the correct order.

Pseudocode Solution

Here's a pseudocode representation of the solution I've devised:

// Get the old and new statuses
oldStatus = entity.get("oldStatus")
newStatus = entity.get("status")

// Define the allowed status order
allowedStatusOrder = ["Draft", "Active", "Running Out", "Inactive"]

// Check if the transition is allowed
if oldStatus is not null and newStatus is not null:
oldStatusIndex = allowedStatusOrder.indexOf(oldStatus)
newStatusIndex = allowedStatusOrder.indexOf(newStatus)

// Check if the new status is in the correct order
if newStatusIndex > oldStatusIndex:
// The transition is allowed, save the changes
return
else:
// The transition is not allowed, display an error message
throwError("Invalid status transition. You can only transition in the order of 'Draft' to 'Active' to 'Running Out' to 'Inactive'.")

is this possible?

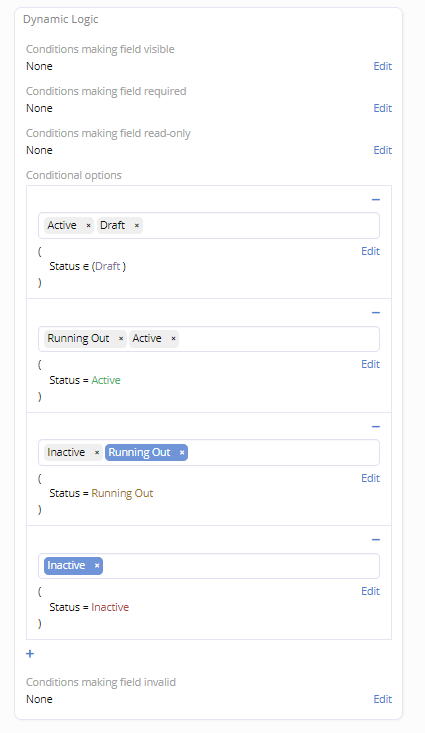

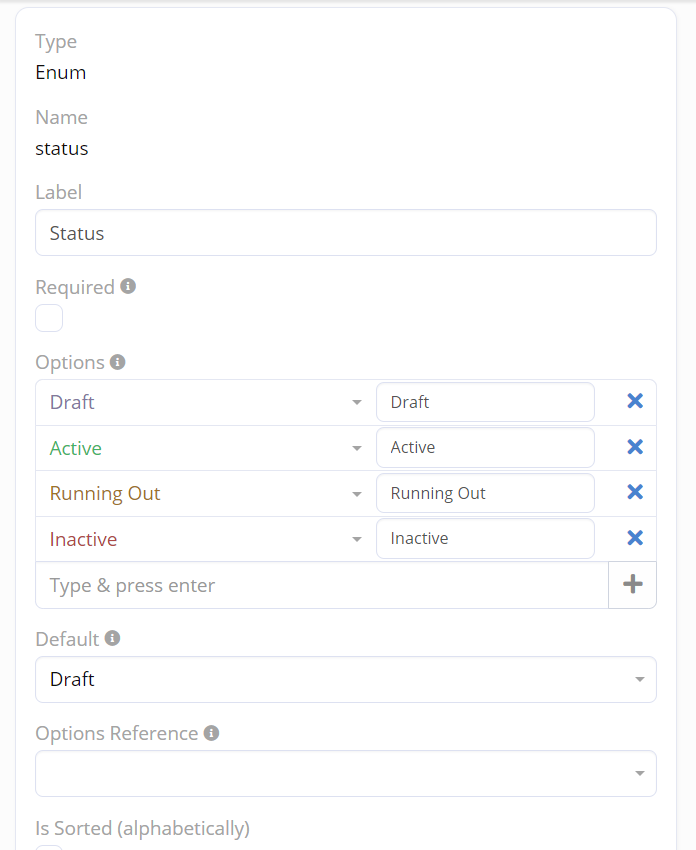

I think you could achieve this using dynamic logic (Conditional options) you can instruct the field to show only certain values when certain value is chosen e.g when field is Draft then show only draft and active status. see attached screenshots.

I hope this helps
Cheers

[arrestthepresident]

Perhaps with the array formula:

https://docs.espocrm.com/administration/formula/array/#arrayremoveat

you could remove options by condition. Though I did not test it.

Problem is that i dont know how to access the old value at the update to compare it. i maybe need to have a temporary field for that.

[arrestthepresident]

I think you could achieve this using dynamic logic (Conditional options) you can instruct the field to show only certain values when certain value is chosen e.g when field is Draft then show only draft and active status. see attached screenshots.

I hope this helps
Cheers

thanks mate! but as i said, i already did this and this only sets the view in the front-end but you can always update the status in the wrong order via mass-update, api or kanban.

...

but thank you!

[rabii]

Hi,

Didn't know that, probably a hook would be perfect for this or maybe Error save handler. Only issues is that mass update you need to create a custom logic a custom mass update action for your entity.

[arrestthepresident]

I have the solution. So i used an API Before Save Script and did this:

// Get the new status
$newStatus = entity\attribute("status"); // Assuming "status" is the field name for the new status

// Get the previous status from the attributeFetched
$oldStatus = entity\attributeFetched("status");

// Define the allowed status order
$allowedStatusOrder = list();
$allowedStatusOrder = array\push($allowedStatusOrder, "Draft");
$allowedStatusOrder = array\push($allowedStatusOrder, "Active");
$allowedStatusOrder = array\push($allowedStatusOrder, "Running Out");
$allowedStatusOrder = array\push($allowedStatusOrder, "Inactive");

// Check if the new status is in the allowed order
if (!array\includes($allowedStatusOrder, $newStatus)) {
recordService\throwBadRequest("Invalid status change. New status is not allowed.");
}

// Check if the status change is in the allowed direction
if (array\indexOf($allowedStatusOrder, $newStatus) < array\indexOf($allowedStatusOrder, $oldStatus)) {
recordService\throwBadRequest("Invalid status change direction. Status can only be updated in one direction.");
}​

...and this works perfect. Thankll you all though. :-)
