Formula - choosing email template problem

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Formula - choosing email template problem

    Hi, i tried to choose email template based on changing some variables.
    Is there any possibility this can work? And if yes, can you tell me what i am doing wrong?
    Emails are sent but no subject, no body (basically no template is applied).

    Could it be that email is not being created with all necessary attributes(I noticed that there is for example "from: null", "name: null" etc.) and thats(maybe) causing the template could not be applied?
    Current ESPO version 7.2.7



    Workflow:

    Any (At least one must be met)

    nakupZalohovkaPanelyZadost
    changed
    nakupZalohovkaKonstrukceZadost
    changed
    nakupZalohovkaMeniceZadost
    changed
    nakupZalohovkaElektroZadost
    changed

    Exectute formula script:

    $emailId = record\create(
    'Email',
    'to', 'miroslava.kaiserova@esmero.eu',
    'status', 'Sent',
    'parentId', entity\attribute('id'),
    'parentType', 'Zakazka');



    Code:
    ifThen(
    entity\isAttributeChanged('nakupZalohovkaPanelyZadost'),
    ext\email\applyTemplate($emailId, '6414723c9d9a30faf');
    ext\email\send($emailId);
    );

    )

    ifThen(
    entity\isAttributeChanged('nakupZalohovkaKonstrukceZadost'),
    ext\email\applyTemplate($emailId, '64147249c944824b7');
    ext\email\send($emailId);
    );


    ifThen(
    entity\isAttributeChanged('nakupZalohovkaMeniceZadost'),
    ext\email\applyTemplate($emailId, '6414726ac64dafaa5');
    ext\email\send($emailId);
    );


    ifThen(
    entity\isAttributeChanged('nakupZalohovkaElektroZadost'),
    ext\email\applyTemplate($emailId, '6414728f96a6229ff');
    ext\email\send($emailId);
    );​
    ​

    JSON of generated email (no subject no body):

    Code:
    {
    "id": "641477d2a2585703d",
    "name": null,
    "deleted": false,
    "subject": null,
    "fromName": null,
    "fromAddress": "",
    "fromString": null,
    "replyToString": null,
    "replyToName": null,
    "replyToAddress": null,
    "addressNameMap": null,
    "from": null,
    "to": "miroslava.kaiserova@esmero.eu",
    "cc": "",
    "bcc": "",
    "replyTo": "",
    "isRead": true,
    "isReplied": false,
    "isUsers": false,
    "nameHash": {
    "miroslava.kaiserova@esmero.eu": "Miroslava Kaiserová"
    },
    "typeHash": {
    "miroslava.kaiserova@esmero.eu": "User"
    },
    "idHash": {
    "miroslava.kaiserova@esmero.eu": "624b0adb25a730048"
    },
    "messageId": "dummy:641477d2a25bbdc60",
    "messageIdInternal": null,
    "bodyPlain": "",
    "body": null,
    "isHtml": true,
    "status": "Sent",
    "hasAttachment": false,
    "dateSent": null,
    "deliveryDate": null,
    "createdAt": "2023-03-17 14:23:14",
    "modifiedAt": "2023-03-17 14:23:14",
    "isSystem": false,
    "icsContents": null,
    "icsEventUid": null,
    "fromEmailAddressId": null,
    "fromEmailAddressName": null,
    "toEmailAddressesIds": [
    "63651305236a99274"
    ],
    "toEmailAddressesNames": {
    "63651305236a99274": "miroslava.kaiserova@esmero.eu"
    },
    "ccEmailAddressesIds": [],
    "ccEmailAddressesNames": {},
    "replyToEmailAddressesIds": [],
    "replyToEmailAddressesNames": {},
    "attachmentsIds": [],
    "attachmentsNames": {},
    "parentId": "6413200d4b616ed4b",
    "parentType": "Zakazka",
    "parentName": "Testovací Zakázka",
    "createdById": "630c8dc00dd195da1",
    "createdByName": "Admin Jakub",
    "sentById": null,
    "sentByName": null,
    "modifiedById": null,
    "modifiedByName": null,
    "assignedUserId": null,
    "assignedUserName": null,
    "repliedId": null,
    "repliedName": null,
    "repliesIds": [],
    "repliesNames": {},
    "repliesColumns": {},
    "teamsIds": [],
    "teamsNames": {},
    "assignedUsersIds": [
    "624b0adb25a730048"
    ],
    "assignedUsersNames": {
    "624b0adb25a730048": "Miroslava Kaiserová"
    },
    "createdEventId": null,
    "createdEventType": null,
    "createdEventName": null,
    "accountId": null,
    "accountName": null,
    "tasksIds": [],
    "tasksNames": {},
    "tasksColumns": {},
    "rodicPrilezitostId": null,
    "rodicPrilezitostType": null,
    "rodicPrilezitostName": null,
    "isFollowed": true,
    "followersIds": [
    "630c8dc00dd195da1",
    "624b0adb25a730048"
    ],
    "followersNames": {
    "630c8dc00dd195da1": "Admin Jakub",
    "624b0adb25a730048": "Miroslava Kaiserová"
    },
    "bccEmailAddressesIds": [],
    "bccEmailAddressesNames": {},
    "attachmentsTypes": {}
    }​


    JSON of email template:

    Code:
    {
    "id": "6414723c9d9a30faf",
    "name": "Zakázka - Žádost o zaplacení zalohovky (Panely)",
    "deleted": false,
    "subject": "Prosím o zaplacení zálohové faktury (Panely) Zakázka: {Zakazka.name}",
    "body": "<p>Prosím o zaplacení zálohové faktury (Panely) Zakázka: {Zakazka.name}<br></p>",
    "isHtml": true,
    "oneOff": false,
    "createdAt": "2023-03-17 13:59:24",
    "modifiedAt": "2023-03-17 13:59:24",
    "attachmentsIds": [],
    "attachmentsNames": {},
    "categoryId": null,
    "categoryName": null,
    "assignedUserId": null,
    "assignedUserName": null,
    "teamsIds": [
    "609b9a9e5b55802d4"
    ],
    "teamsNames": {
    "609b9a9e5b55802d4": "Obchod ESMERO (všetci)"
    },
    "createdById": "630c8dc00dd195da1",
    "createdByName": "Admin Jakub",
    "modifiedById": null,
    "modifiedByName": null,
    "versionNumber": 1,
    "attachmentsTypes": {}
    }

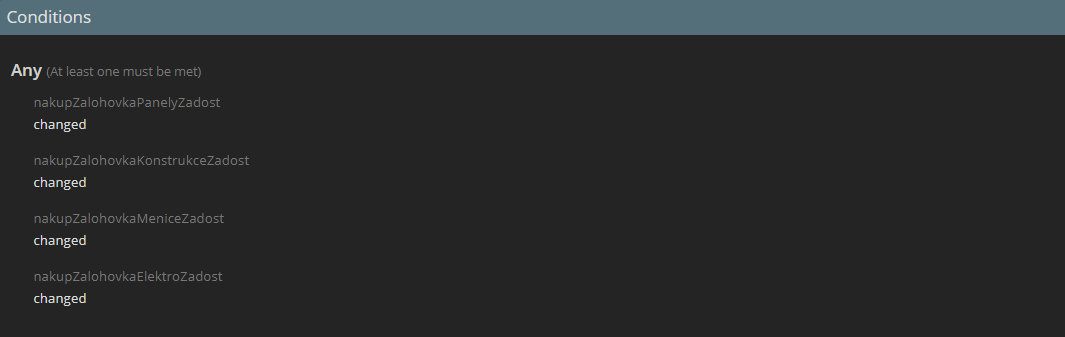

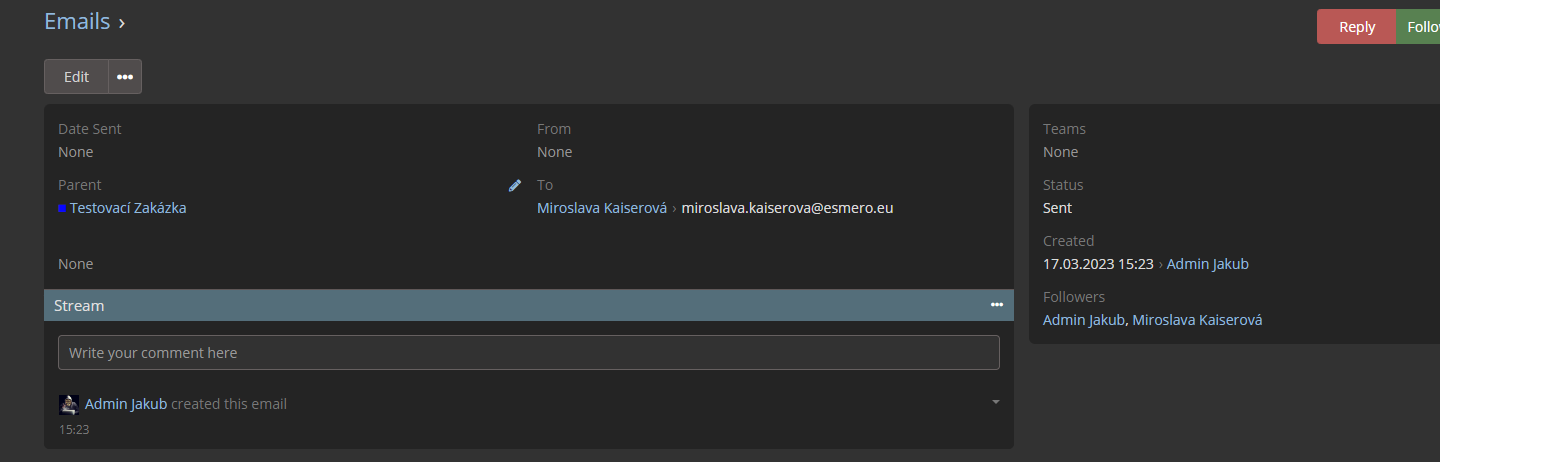

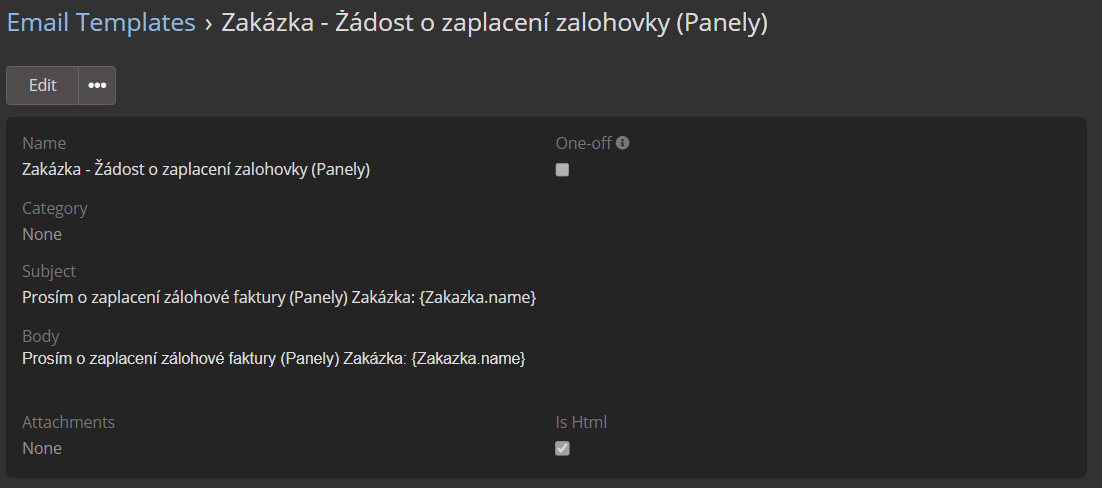

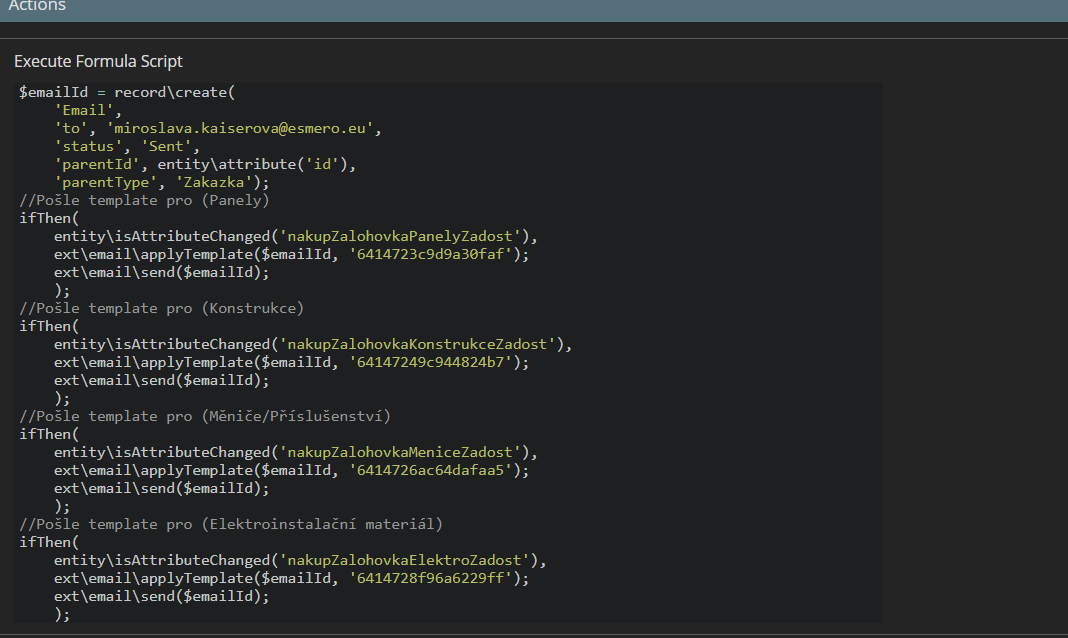

    Email template example , sent email_screen, condition_screen, action_screen are in attechement)
    Thanks a lot for answers
    Attached Files
    Last edited by tomas.klicka; 03-17-2023, 02:49 PM.

  • #2
    try status, 'Sending' Not sent.

    PHP Code:
    $emailId record\create(
    'Email',
    'to''miroslava.kaiserova@esmero.eu',
    'status''Sending',
    'parentId'entity\attribute('id'),
    'parentType''Zakazka');​
    Rabii
    Web Dev

    Comment


    • #3
      Hi, we´ve just tried it and nothing happened. Even the mail wasn´t sent. "Draft" or "Sending" do anything while "Sent" actually sent an mail...but as i pointed out above, no template is applied. It´s just empty mail.

      Comment


      • #4
        Hi, probably error in formula:

        ifThen(
        entity\isAttributeChanged('nakupZalohovkaPanelyZad ost'),
        ext\email\applyTemplate($emailId, '6414723c9d9a30faf');
        ext\email\send($emailId); <- don`t put this semicolon
        );

        ) <- why this?

        Comment


        • #5
          Hi, It said syntax was OK even before, but i tried this and no changes :-(

          Comment


          • rabii
            rabii commented
            Editing a comment
            can you share the whole code all code in you script.

        • #6
          ​Workflow

          Conditions

          Any (At least one must be met)

          Žádost o zaplacení zálohovky (Panely)
          changed
          Žádost o zaplacení zálohovky (Konstrukce)
          changed
          Žádost o zaplacení zálohovky (Měniče/Příslušenství)
          changed
          Žádost o zaplacení zálohovky (Elektroinstalační materiál)
          changed

          Execute formula script

          Code:
          $emailId = record\create(
          'Email',
          'to', 'jakub.grufik@esmero.eu',
          'status', 'Draft',
          'parentId', entity\attribute('id'),
          'parentType', 'Zakazka');

          ifThen(
          entity\isAttributeChanged('nakupZalohovkaPanelyZadost'),
          ext\email\applyTemplate($emailId, '6414723c9d9a30faf');
          ext\email\send($emailId)
          );

          ifThen(
          entity\isAttributeChanged('nakupZalohovkaKonstrukceZadost'),
          ext\email\applyTemplate($emailId, '64147249c944824b7');
          ext\email\send($emailId)
          );

          ifThen(
          entity\isAttributeChanged('nakupZalohovkaMeniceZadost'),
          ext\email\applyTemplate($emailId, '6414726ac64dafaa5');
          ext\email\send($emailId)
          );

          ifThen(
          entity\isAttributeChanged('nakupZalohovkaElektroZadost'),
          ext\email\applyTemplate($emailId, '6414728f96a6229ff');
          ext\email\send($emailId)
          );
          ​​

          Comment


          • #7
            Hi tomas.klicka,

            Please try to change your formula to the following:
            Code:
            $emailId = record\create(
            'Email',
            'to', 'jakub.grufik@esmero.eu',
            'status', 'Draft',
            'parentId', entity\attribute('id'),
            'parentType', 'Zakazka');

            ifThen(
            workflow\targetEntity\attributeFetched('nakupZalohovkaPanelyZadost') != workflow\targetEntity\attribute('nakupZalohovkaPanelyZadost'),
            ext\email\applyTemplate($emailId, '6414723c9d9a30faf');
            ext\email\send($emailId)
            );

            ifThen(
            workflow\targetEntity\attributeFetched('nakupZalohovkaKonstrukceZadost') != workflow\targetEntity\attribute('nakupZalohovkaKonstrukceZadost'),
            ext\email\applyTemplate($emailId, '64147249c944824b7');
            ext\email\send($emailId)
            );

            ifThen(
            workflow\targetEntity\attributeFetched('nakupZalohovkaMeniceZadost') != workflow\targetEntity\attribute('nakupZalohovkaMeniceZadost'),
            ext\email\applyTemplate($emailId, '6414726ac64dafaa5');
            ext\email\send($emailId)
            );

            ifThen(
            workflow\targetEntity\attributeFetched('nakupZalohovkaElektroZadost') != workflow\targetEntity\attribute('nakupZalohovkaElektroZadost'),
            ext\email\applyTemplate($emailId, '6414728f96a6229ff');
            ext\email\send($emailId)
            );​

            Comment


            • #8
              Hi. Just tried this and still the same problem. No mails sent and still no errors in LOG.
              I know i can create 4 single workflows to solve this, but i thought this is the way how to make it in 1.

              Comment


              • #9
                tomas.klicka,

                Please make sure that your Outbound Emails are set up correctly and that you can successfully send a test email. Also, make sure the Trigger Type for your workflow is set to After record saved or After record updated.

                Comment


                • #10
                  Test email receiving is OK and trigger type of the workflow is set to After record updated. - seems OK
                  Last edited by tomas.klicka; 03-20-2023, 02:33 PM.

                  Comment


                  • #11
                    tomas.klicka,

                    I created an entity with Base type and added four fields with Varchar type with the same names/values as your fields (in fact, this should not affect the correct operation of Workflow, just for our convenience).

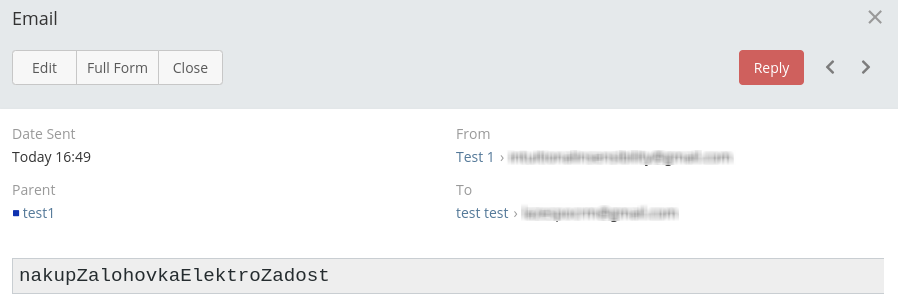

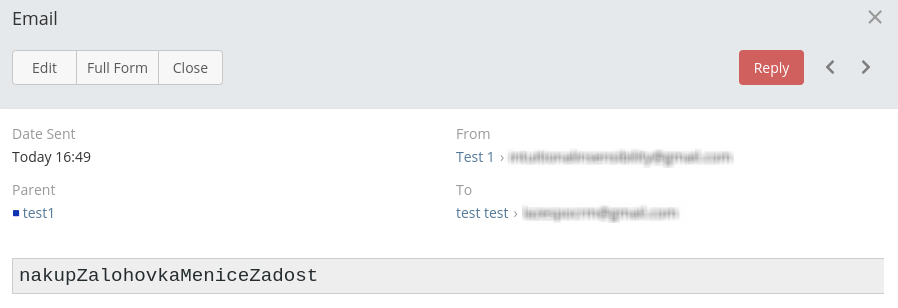

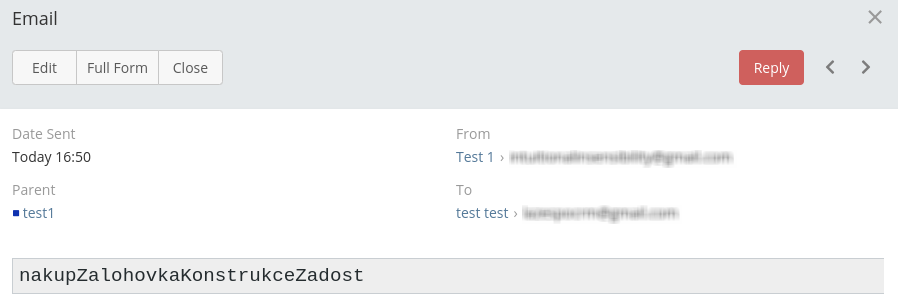

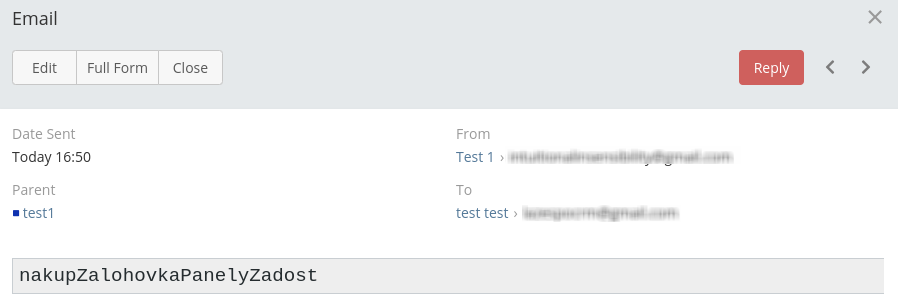

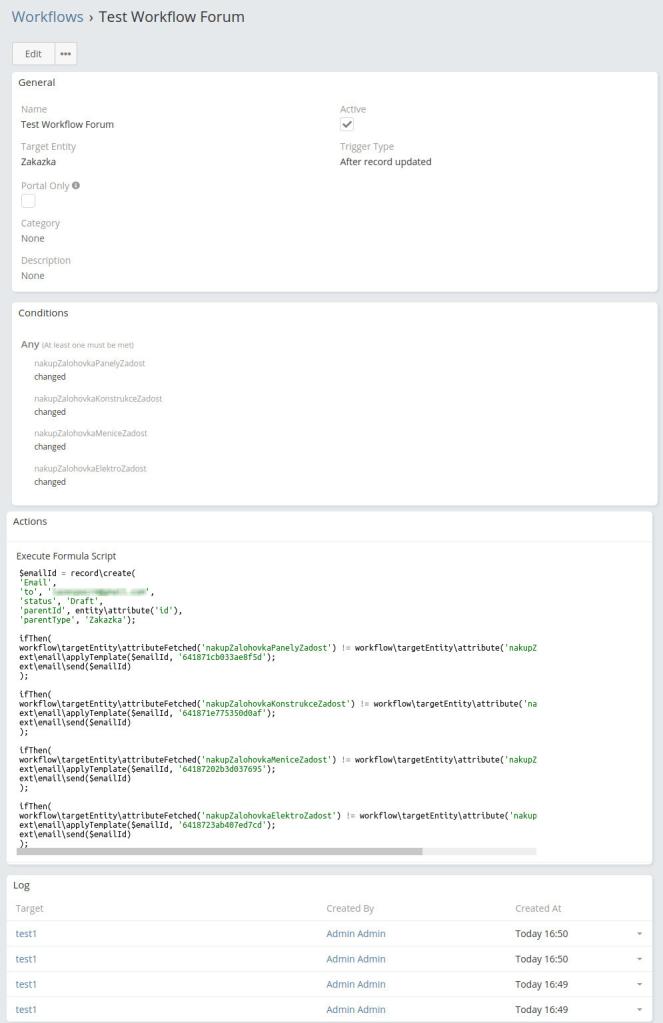

                    Next, I attach screenshots of my Workflow, which works successfully every time the value of one or another field changes, and screenshots of emails. That is, the formulas work correctly.

                    Click image for larger version

Name:	5.jpg
Views:	236
Size:	52.6 KB
ID:	89694

                    Click image for larger version

Name:	1.png
Views:	344
Size:	25.4 KB
ID:	89690Click image for larger version

Name:	2.png
Views:	330
Size:	25.8 KB
ID:	89691
                    Click image for larger version

Name:	3.png
Views:	321
Size:	26.5 KB
ID:	89692Click image for larger version

Name:	4.png
Views:	319
Size:	25.6 KB
ID:	89693​​​​

                    The problem must be looked for elsewhere.

                    Please tell me which versions of EspoCRM and Advanced Pack extension do you use? Need to analyze.​

                    Comment


                    • item
                      item commented
                      Editing a comment
                      Hi Lazovic,

                      if first email/Send.. .so what append to other ifThen because email first is send ?

                      in my case, this work .. i create one email for one while loop :

                      while($i < array\length($factureIds),
                      $factureId = array\at($factureIds, $i);
                      ///// many other data
                      $language = record\attribute('Contact', $contactId, 'language');

                      ifThenElse(
                      $language == 'Fr',
                      $emailTemplateId = 'ddd';
                      $factureTemplateId = 'ccc'
                      ,
                      $emailTemplateId = 'aaa';
                      $factureTemplateId = 'vvv'
                      );
                      $attachmentName = string\concatenate($factureName, '.pdf');
                      $attachmentId = ext\pdf\generate('Facture', $factureId, $factureTemplateId, $attachmentName);
                      $emailId = record\create('Email',
                      'to', $contactEmailAddress,
                      'attachmentsIds', list($attachmentId),
                      'parentId', $contactId,
                      'parentType', 'Contact',
                      'teamsIds', list('aaaa', 'bbbb')
                      );
                      ext\email\applyTemplate($emailId, $emailTemplateId);
                      ext\email\send($emailId);

                      $i = $i + 1;
                      );


                      maybe is VPS performance issue ?
                      i don't set status of email too.
                      i create oneEmail by loop
                      Last edited by item; 03-20-2023, 11:45 PM.

                  • #12
                    Hello lazovic I am taking over this issue after my colleague.

                    The problem is somewhere in the function "ext\email\send($emailId)"

                    I followed these steps and here are results:
                    Code:
                    //This Creates the email with the status Draft - no problem so far
                    $emailId = record\create(
                        'Email',
                        'to', 'jakub.grufik@esmero.eu',
                        'status', 'Draft',
                        'parentId', entity\attribute('id'),
                        'parentType', 'Zakazka');

                    //This update created email "Draft" and applies the template - no problem so far
                    ext\email\applyTemplate($emailId, '6414723c9d9a30faf')

                    //This is where the problem appears, this just changes the status of the existing email from Draft to Sending, but nothing is delivered to my mailbox
                    ext\email\send($emailId)​
                    I found out that if the "from" is empty then the system email is being used - that is cool and it is working perfectly. However, the email is not being delivered and is being stuck in the status "Sending". I have tested our SMTP for the system email address and it is working without any problem. When I try to send the test email from the system email it is working perfectly and the email arrives within 1 minute.

                    I have no clue what could be wrong with the function.
                    EspoCRM 7.2.7
                    Advanced pack 2.11.4
                    PHP 8.1
                    Thanks a lot for the help and for your time!

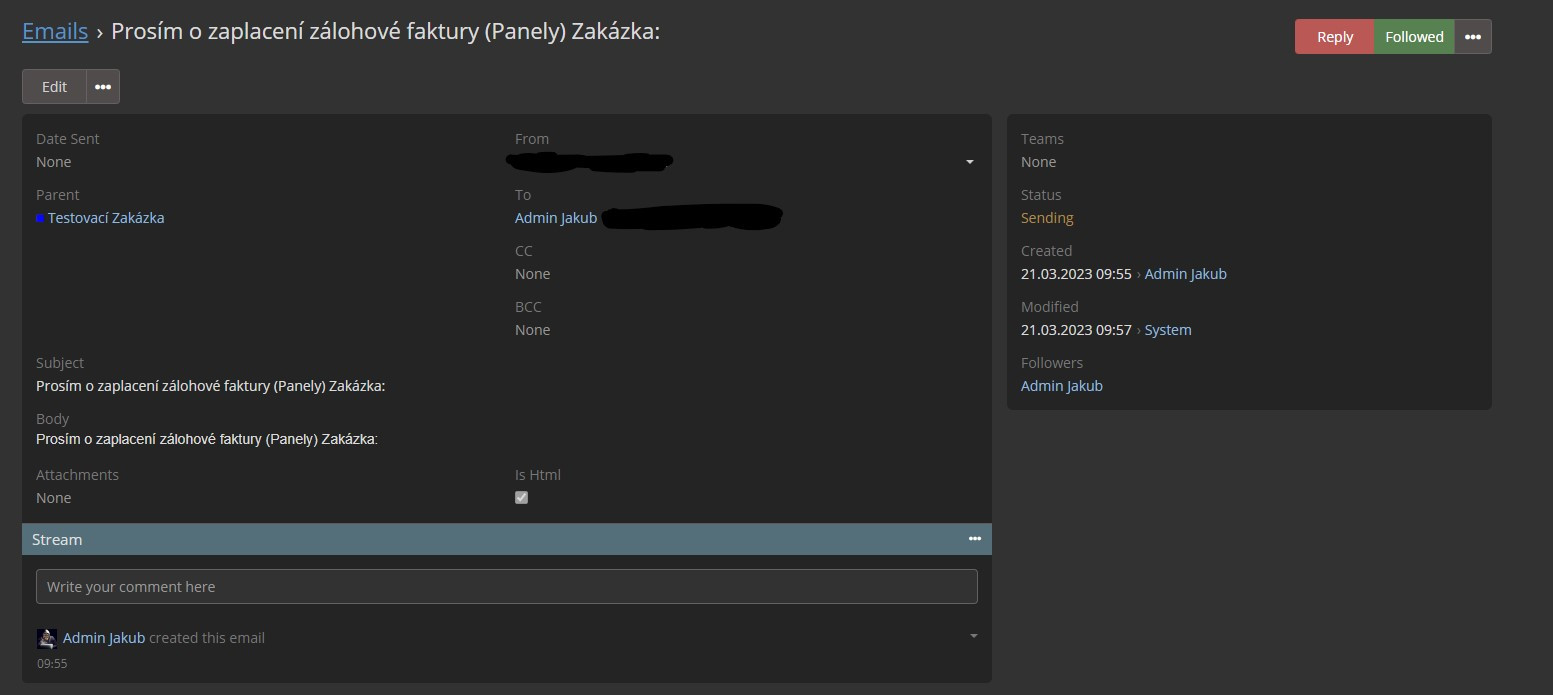

                    I am attaching a screen of the email stuck in the status Sending.

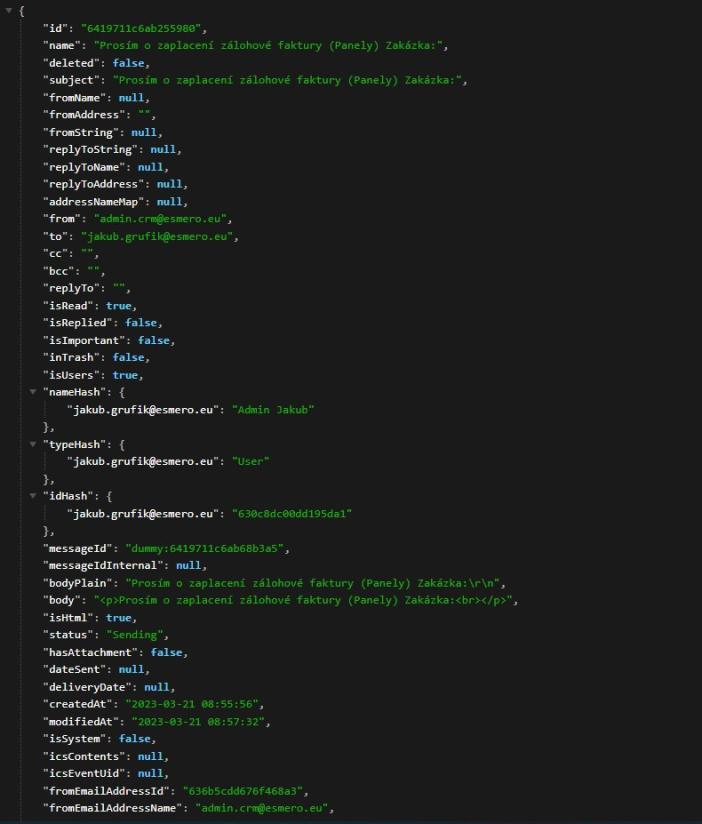

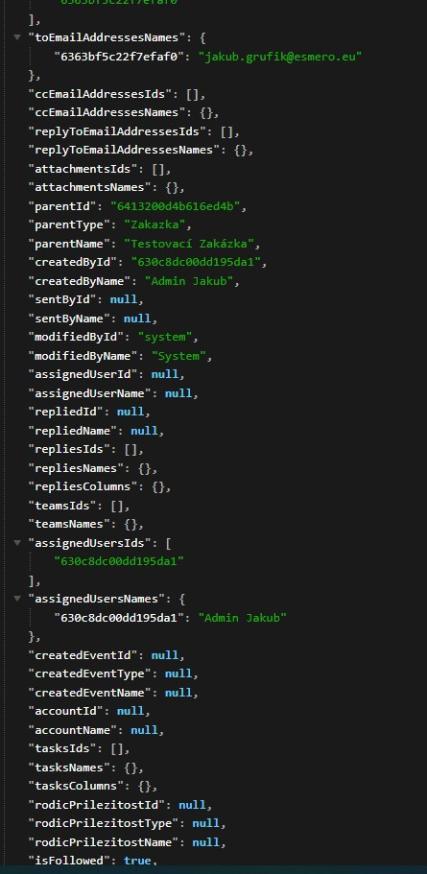

                    Here is the JSON of the email stuck in the status Sending.
                    Code:
                    {"id": "6419711c6ab255980","name": "Prosím o zaplacení zálohové faktury (Panely) Zakázka:","deleted": false,"subject": "Prosím o zaplacení zálohové faktury (Panely) Zakázka:","fromName": null,"fromAddress": "","fromString": null,"replyToString": null,"replyToName": null,"replyToAddress": null,"addressNameMap": null,"from": "admin.crm@esmero.eu","to": "jakub.grufik@esmero.eu","cc": "","bcc": "","replyTo": "","isRead": true,"isReplied": false,"isImportant": false,"inTrash": false,"isUsers": true,"nameHash": {"jakub.grufik@esmero.eu": "Admin Jakub"},"typeHash": {"jakub.grufik@esmero.eu": "User"},"idHash": {"jakub.grufik@esmero.eu": "630c8dc00dd195da1"},"messageId": "dummy:6419711c6ab68b3a5","messageIdInternal": null,"bodyPlain": "Prosím o zaplacení zálohové faktury (Panely) Zakázka:\r\n","body": "<p>Prosím o zaplacení zálohové faktury (Panely) Zakázka:<br></p>","isHtml": true,"status": "Sending","hasAttachment": false,"dateSent": null,"deliveryDate": null,"createdAt": "2023-03-21 08:55:56","modifiedAt": "2023-03-21 08:57:32","isSystem": false,"icsContents": null,"icsEventUid": null,"fromEmailAddressId": "636b5cdd676f468a3","fromEmailAddressName": "admin.crm@esmero.eu","toEmailAddressesIds": ["6363bf5c22f7efaf0"],"toEmailAddressesNames": {"6363bf5c22f7efaf0": "jakub.grufik@esmero.eu"},"ccEmailAddressesIds": [],"ccEmailAddressesNames": {},"replyToEmailAddressesIds": [],"replyToEmailAddressesNames": {},"attachmentsIds": [],"attachmentsNames": {},"parentId": "6413200d4b616ed4b","parentType": "Zakazka","parentName": "Testovací Zakázka","createdById": "630c8dc00dd195da1","createdByName": "Admin Jakub","sentById": null,"sentByName": null,"modifiedById": "system","modifiedByName": "System","assignedUserId": null,"assignedUserName": null,"repliedId": null,"repliedName": null,"repliesIds": [],"repliesNames": {},"repliesColumns": {},"teamsIds": [],"teamsNames": {},"assignedUsersIds": ["630c8dc00dd195da1"],"assignedUsersNames": {"630c8dc00dd195da1": "Admin Jakub"},"createdEventId": null,"createdEventType": null,"createdEventName": null,"accountId": null,"accountName": null,"tasksIds": [],"tasksNames": {},"tasksColumns": {},"rodicPrilezitostId": null,"rodicPrilezitostType": null,"rodicPrilezitostName": null,"isFollowed": true,"followersIds": ["630c8dc00dd195da1"],"followersNames": {"630c8dc00dd195da1": "Admin Jakub"},"bccEmailAddressesIds": [],"bccEmailAddressesNames": {},"attachmentsTypes": {}}​
                    Attached Files
                    Last edited by Jakub Grufik; 03-21-2023, 09:24 AM.

                    Comment


                    • Jakub Grufik
                      Jakub Grufik commented
                      Editing a comment
                      edit: When I use workflow action "Send email" it is working without any problem and emails are being delivered. The only problem appears when I am trying to use the formula ext\email\send()​

                  • #13
                    Hi Jakub Grufik

                    Why not try to upgrade the advanced pack to the latest version and try again. there has some fixes done the advanced pack and now the current version is 2.23.9. it is worth upgrading the package and also the espocrm instance.
                    Rabii
                    Web Dev

                    Comment


                    • #14
                      Hi Jakub Grufik,

                      On EspoCRM 7.2.7 and Advanced Pack 2.11.4, sending emails through a formula in Workflows works fine.
                      Please try changing your formula to the following (added mandatory dot and comma characters):
                      Code:
                      ​$emailId = record\create(
                      'Email',
                      'to', 'jakub.grufik@esmero.eu',
                      'status', 'Draft',
                      'parentId', entity\attribute('id'),
                      'parentType', 'Zakazka');

                      ext\email\applyTemplate($emailId, '6414723c9d9a30faf');
                      ext\email\send($emailId)​;

                      Comment


                      • Jakub Grufik
                        Jakub Grufik commented
                        Editing a comment
                        Hey lazovic, of course ; is present where it should be in the original code but thanks a lot for the tip.

                        Here is the real code I am using:

                        $emailId = record\create(
                        'Email',
                        'to', 'jakub.grufik@esmero.eu',
                        'status', 'Draft',
                        'parentId', entity\attribute('id'),
                        'parentType', 'Zakazka');

                        ext\email\applyTemplate($emailId, '6414723c9d9a30faf');
                        ext\email\send($emailId)

                        as I mentioned, everything is being executed correctly except ext\email\send($emailId), this one just changes the status of the email to "Sending" from "Draft". But nothing is being delivered.

                      • rabii
                        rabii commented
                        Editing a comment
                        Hey Jakub,

                        You are missing ; at the end of ext\email\send($emailId)

                        That would skip the function.

                        Thanks

                      • Jakub Grufik
                        Jakub Grufik commented
                        Editing a comment
                        hey rabii, ; does not have to be there as it is the last row of the code, and it is somehow working because it is changing the status from draft to sending.. (I tried it even with ; at the end of the row just to make sure - same result)
                    Working...
                    X
