Catching HTTP Errors from BPMN Tasks containing Send HTTP Request Actions

[sekjal]

Is it possible to tell whether a Task that executed a Send HTTP Request action completed successfully or with errors, and then follow a different workflow path based on that? I've tried putting the Task in a Sub-Process and having a Error Intermediate Event, but it's not working as I expected.

My end goal is to be able to do regular checking of URL fields in a custom entity

[yuri]

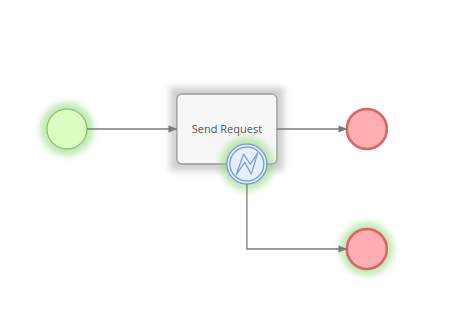

I tested whether Boundary Error is caught when Request return error (code not in a 200..300 range) and it worked.

[esendino]

And how can be retrieved information on what error it was or any available detail?

[rabii]

After Boundary error you can still access the like this ($errors = json\retrieve($_lastHttpResponseBody, 'errors')) and you can check the error. Or you can add multiple Boundary Errors on the same task e.g one for error 404 - another on error 401 etc

[sekjal]

Thank you so much! I wasn't using the Boundary Event in the right place, but your visual showed me what to do!

[dimyy]

Cool if $ _lastHTTPrequestBode is full and on error. 4 * error does not mean no response from external service

[esendino]

Hi rabii

Thanks a lot for your answer, I tried to follow what you mentioned but couldn´t make it work

You offered two possibilities:

1.-"you can still access the like this ($errors = json\retrieve($_lastHttpResponseBody, 'errors'))"
2.- can add multiple Boundary Errors

I was trying to see how to d what you suggested.

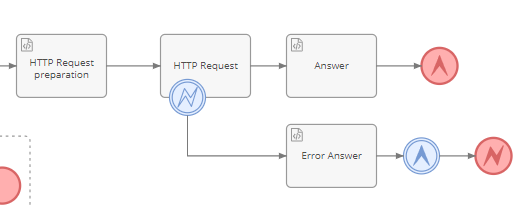

I have this BPM. That works perfect when the endpoint exists. Now I'm testing what happens if rhe endpoint doesn't exist.



1.- based on _lastHttpResponseBody

As per documentation _lastHttpResponseBody can be accessed in a following workflow action.

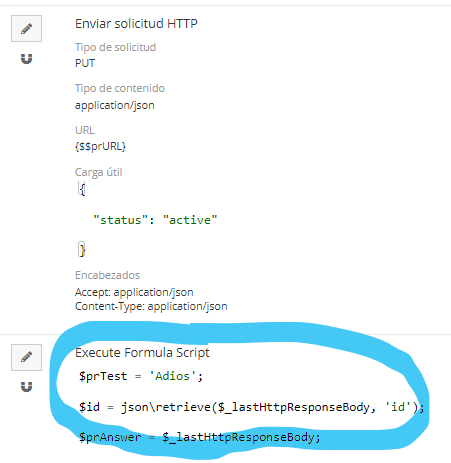

So In the HTTP Request i have these two actions in the task "HTTP Request"



But the issue is that the second action (blue) is not executed if the first fails

I tried in the next task "Error Answer" to retrieve _lastHttpResponseBody, both directly and with workflow\lastHttpResponseBody() and neither worked.

So, I don't know how to implement this 1st suggestion

2.- Based on multiple Boundary Errors

The issue here is that I don't know how to include conditions for the different types of errors


I appreciate very much any light you could provide

[rabii]

Hey,

Yes as per documentation the second action won't be executed because the first one failed. What you need to do is to remove the second action and just add different Boundary errors depending on what is returned from your api endpoint.

[rabii]

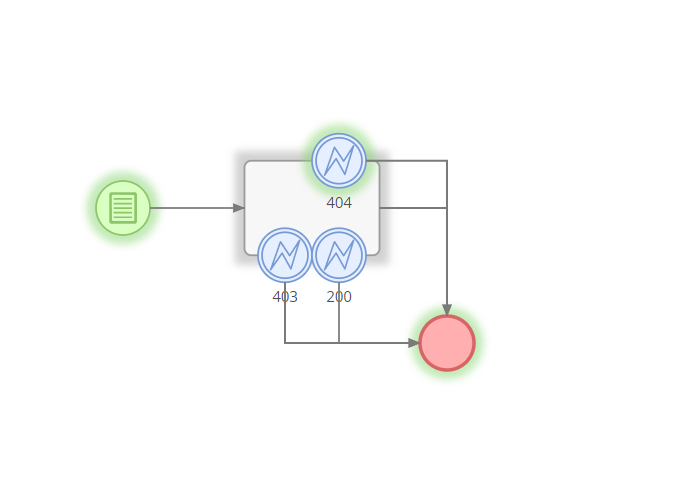

I suggest that you add multiple Boundary Errors (if you know what errors return from your endpoint api) and then just redirect the flow to next action based on your logic. By the way if you don't know what error is returned you can always check the log under Data/Logs and you will find out which error is returned. Otherwise if you keep a Boundary Error (code) empty then it will catch any errors from the request. See attached screenshot for your reference (i have defined multiple Boundary errors on my flowchart each has a specific code e.g 403 - 404 and it catch the correct code).

From your pic which error code you defined on your Boundary Error??

[esendino]

Thanks a lot rabii

It works perfect!!

The complete answer from my API is (in this particular case) this

{
"code": "woocommerce_rest_invalid_payment_data",
"message": "No se pudieron establecer las fechas de la suscripcion. Mensaje de error: Suscripcion #44223: La fecha de next_payment debe ocurrir despues de la fecha de inicio.",
"data": {
"status": 400
}
}

espocrm is getting the 400 as the code error

But how I can get the "code" and "message" information within the BPM?

[rabii]

tbh i am not sire if possible to access the returned response if it failed. you need to double check with the team to see if this is possible.

[esendino]

Thank you very much

[rabii]

you are welcome
