  • VOIP not showing incoming/outgoing call notifications

    VOIP not showing incoming/outgoing calls notifications

    I have enable this to the server my phone is connected to and connection was successful, I setup my user ID with my Ext and PW.
    I setup the scheduled task to run every minute as instructed. I am not getting any notifications! What could be wrong?

  • #2
    Did you follow this instruction https://www.espocrm.com/features/ast...ration-setup/?
    In some cases, the Asterisk server sends to EspoCRM a user phone number instead of user Ext. Try to add additional phone numbers for your user https://www.espocrm.com/features/ast...-phone-numbers.
    Job Offers and Requests

    Comment


    • khopper
      khopper commented
      Editing a comment
      Yes, I followed the setup instructions.
      My Ext has no other numbers associated to it, IB or OB.
      This is however running on a windows server using the "Task Scheduler" and set to run every minute.
      Has this been extension been tested by development to work on a Microsoft platform or is it specific to Linux?

  • #3
    Linux server is preferred, but for Windows it should work fine as well.
    To find a problem:
    1. Enable a debug mode https://www.espocrm.com/documentatio...debugging-mode.
    2. Make test calls
    3. Check EspoCRM log file https://www.espocrm.com/documentatio...crm-error-logs. Here should be some information about call events.
    Job Offers and Requests

    Comment


    • #4
      I just installed VoIP Integration 1.9.1 and configured and connection show successful - however the i am not getting any notifications or pop ups.
      The Cron job is scheduled but I do not see any logs in espo regarding the voip at all.

      Comment


      • #5
        Please let me know more details about your telephony server?
        Job Offers and Requests

        Comment


        • #6
          Asterisk 1.8 on a Vicidial server. I also confirmed my user account in the CRM is configured for it also.
          VERSION: 2.12-565a
          BUILD: 160827-0917
          Last edited by khopper; 01-25-2019, 03:43 PM.

          Comment


          • #7
            Did you have configure this cron job (the correct command is inside Asterisk connector):
            Code:
            * * * * * /usr/bin/php -f /var/www/espocrm/voip.php Asterisk > /dev/null 2>&1
            Job Offers and Requests

            Comment


            • #8
              This is my code:

              Code:
              * * * * * cd /var/www/espocrm; /usr/bin/php -f cron.php > /dev/null 2>&1
              * * * * * cd /var/www/espocrm; /usr/bin/php -f voip.php Asterisk > /dev/null 2>&1

              Comment


              • #9
                Yes, that's fine. Please debug a problem:
                1. Enable a debug mode, https://www.espocrm.com/documentatio...e-for-a-logger.
                2. Make test calls.
                3. Check EspoCRM log file https://www.espocrm.com/documentatio...crm-error-logs. Here should be some information about call events or errors.
                Job Offers and Requests

                Comment


                • #10
                  DEBUG Mode is already enabled and is always on in my environment.

                  I currently see this in the new log before attempting anything. I renamed the old log file and restarted the apache2 services after renaming so espo would generate a new file.
                  Anything involving VOIP does not appear to be creating any log files even in DEBUG mode.

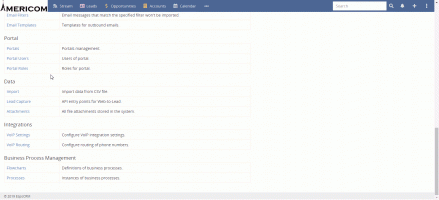

                  See attached GIF.

                  My support team says they see it connecting when preforming the "Test Connection" but nothing else.

                  [2019-01-26 08:30:10] Espo.ERROR: Uncaught Exception PAMI\Client\Exception\ClientException: "Error reading" at /var/www/espocrm/application/Espo/Modules/Voip/Providers/Asterisk/Ami/vendor/marcelog/pami/src/PAMI/Client/Impl/ClientImpl.php line 238 {"exception":"[object] (PAMI\\Client\\Exception\\ClientException(code: 0): Error reading at /var/www/espocrm/application/Espo/Modules/Voip/Providers/Asterisk/Ami/vendor/marcelog/pami/src/PAMI/Client/Impl/ClientImpl.php:238)"} []
                  [2019-01-26 09:30:10] Espo.ERROR: Uncaught Exception PAMI\Client\Exception\ClientException: "Error reading" at /var/www/espocrm/application/Espo/Modules/Voip/Providers/Asterisk/Ami/vendor/marcelog/pami/src/PAMI/Client/Impl/ClientImpl.php line 238 {"exception":"[object] (PAMI\\Client\\Exception\\ClientException(code: 0): Error reading at /var/www/espocrm/application/Espo/Modules/Voip/Providers/Asterisk/Ami/vendor/marcelog/pami/src/PAMI/Client/Impl/ClientImpl.php:238)"} []
                  Attached Files
                  Last edited by khopper; 01-27-2019, 06:11 PM.

                  Comment


                  • #11
                    Your Asterisk is closing the connection, you should check the Asterisk console for more information.
                    Job Offers and Requests

                    Comment


                    • #12
                      According to the AMI logs i do not see espo passing the Dialstring or Peername properly if at all.



                      Event: Newchannel
                      Privilege: call,all
                      Channel: SIP/2005-00001954
                      ChannelState: 0
                      ChannelStateDesc: Down
                      CallerIDNum:
                      CallerIDName: Kim Hopper
                      AccountCode: 2005
                      Exten:
                      Context: default_wr
                      Uniqueid: 1565447825.21106

                      Event: ChannelUpdate
                      Privilege: system,all
                      Channel: SIP/2005-00001954
                      Uniqueid: 1565447825.21106
                      Channeltype: SIP
                      SIPcallid: 0c388836537745bf60b3f710397df9f2@192.168.5.249:506 0
                      SIPfullcontact: sip:2005@192.168.4.99:53200;rinstance=bb704ae0a8cc d16b

                      Event: ChannelUpdate
                      Privilege: system,all
                      Channel: SIP/2005-00001954
                      Channeltype: SIP
                      SIPcallid: 0c388836537745bf60b3f710397df9f2@192.168.5.249:506 0
                      SIPfullcontact: sip:2005@192.168.4.99:53200;rinstance=bb704ae0a8cc d16b
                      Peername: 2005

                      Event: NewAccountCode
                      Privilege: call,all
                      Channel: SIP/2005-00001954
                      Uniqueid: 1565447825.21106
                      AccountCode:
                      OldAccountCode: 2005

                      Event: NewCallerid
                      Privilege: call,all
                      Channel: SIP/2005-00001954
                      CallerIDNum: 2005
                      CallerIDName: Kim Hopper
                      Uniqueid: 1565447825.21106
                      CID-CallingPres: 0 (Presentation Allowed, Not Screened)

                      Event: Newstate
                      Privilege: call,all
                      Channel: SIP/2005-00001954
                      ChannelState: 5
                      ChannelStateDesc: Ringing
                      CallerIDNum: 2005
                      CallerIDName: Kim Hopper
                      ConnectedLineNum: 2005
                      ConnectedLineName:
                      Uniqueid: 1565447825.21106

                      Event: ChannelUpdate
                      Privilege: system,all
                      Channel: SIP/2005-00001954
                      Channeltype: SIP
                      Uniqueid: 1565447825.21106
                      SIPcallid: 0c388836537745bf60b3f710397df9f2@192.168.5.249:506 0
                      SIPfullcontact: sip:2005@192.168.4.99:53200;rinstance=bb704ae0a8cc d16b
                      Peername: 2005

                      Event: Newstate
                      Privilege: call,all
                      Channel: SIP/2005-00001954
                      ChannelState: 6
                      ChannelStateDesc: Up
                      CallerIDNum: 2005
                      CallerIDName: Kim Hopper
                      ConnectedLineNum: 2005
                      ConnectedLineName:
                      Uniqueid: 1565447825.21106

                      Event: Hangup
                      Privilege: call,all
                      Channel: SIP/2005-00001954
                      Uniqueid: 1565447825.21106
                      CallerIDNum: 2005
                      CallerIDName: Kim Hopper
                      ConnectedLineNum: 2005
                      ConnectedLineName: <unknown>
                      Cause: 16
                      Cause-txt: Normal Clearing
                      Last edited by khopper; 08-10-2019, 02:50 PM.

                      Comment


                      • #13
                        Kim,
                        Thanks for detailed information. I do not see any errors based on your log information. These may cause the problems:
                        1. Check if "Dial Context" option is correct. This option should be set as defined in your Asterisk configuration. This option is very important for outgoing calls.
                        2. I see that you have 4 additional phone numbers in your user profile. And you are trying to make a call from one your phone number to another. It may cause a problem with displaying a call popup. Try to leave only your phone number, other phone numbers you can save in contacts for example.
                        After these changes, please try to make new tests.
