  • Costum List View

    Good morning,

    I would like to create a list view in which the columns are swapped with the rows.
    Does anyone of you have an approach for me how to do this.
    Possibly also in an existing list.

    Thanks in advance
    Bye
    Reinhard

  • #2
    I will give an example, between the RED lines we can see the fields from the Entity, right? I want to put the fields between the yellow lines.
    And use the content between the yellow lines at the between the red lines. could I express myself well enough ? Thanks

    Comment


    • #3
      Perhaps this helps: https://dbushell.com/2016/03/04/css-...onsive-tables/

      or this: https://siongui.github.io/2017/04/16...se-html-table/

      But don`t ask me, how to implement this in espoCRM......
      Last edited by shalmaxb; 02-11-2022, 10:12 AM.

      Comment


      • #4
        Excellent hint shalmaxb , I was able to implement it and created a post in this thread for other users that might also be interested.

        The idea of this thread is to create a "road map/guide" to help developers find where GUI sections or elements are defined within Espo code so customization projects can be implemented without having to spend a lot of time "finding your way around" the code (like many of us have done) whenever possible.

        Comment


        • #5
          I guess this could be interesting also for the problem regarding mobile view, where in wide list views you would have to scroll a lot.

          Comment


          • #6
            Hy Guys thanks a lot shalmaxb for the hint very nice, telecastg i lack the words you are the madness, many thanks for the example, i will test it today immediately with me

            Comment


            • #7
              I have implemented the code now, but unfortunately the dropdown does not show up for me. Does anyone have a tip for me? Thanks here is my code.

              Code:
              Espo.define('crm-plus:views/fields/link-multiple-form/inline-list', 'views/record/list', function (Dep) {

              return Dep.extend({

              dropdownItemList: [
              {
              name: 'transposeColumnsToRows',
              label: 'Transpose Columns to Rows'
              },
              {
              name: 'resetTransposition',
              label: 'Reset Transposition'
              }
              ],

              actionTransposeColumnsToRows: function () {
              $('tr.list-row').css("display","block");
              $('tr.list-row').css("float","left");
              $('td.cell').css("display","block");
              $('th').css("display","none");
              },

              actionResetTransposition: function () {
              $('tr.list-row').css("display","");
              $('tr.list-row').css("float","");
              $('td.cell').css("display","");
              $('th').css("display","");
              },



              The clientdefs

              Code:
              {
              "controller": "controllers/record",
              "boolFilterList": [
              "onlyMy"
              ],
              "gridLayoutType": "grid",
              "isWide": true,
              "recordViews": {
              "list": "crm-plus:views/fields/link-multiple-form/inline-list"
              }
              }

              Comment


              • rabii
                rabii commented
                Editing a comment
                you should replace crm-plus with the correct custom folder you are using for your entity, try to place the code within the custom folder for the desired entity you wish to apply this to. e.g under client/src/views/fields/link-multiple-form/inline-list this should be the correct folder structure.

                1) Create a custom list view class to render the target entity's list display: your-entity-name

                client/custom/views/your-entity-name/record/list.js

                Code:
                Espo.define('custom:views/your-entity-name/record/list', 'views/record/list', function (Dep) {

                return Dep.extend({

                dropdownItemList: [
                {
                name: 'transposeColumnsToRows',
                label: 'Transpose Columns to Rows'
                },
                {
                name: 'resetTransposition',
                label: 'Reset Transposition'
                }
                ],

                actionTransposeColumnsToRows: function () {
                $('tr.list-row').css("display","block");
                $('tr.list-row').css("float","left");
                $('td.cell').css("display","block");
                $('th').css("display","none");
                },

                actionResetTransposition: function () {
                $('tr.list-row').css("display","");
                $('tr.list-row').css("float","");
                $('td.cell').css("display","");
                $('th').css("display","");
                },
                2) Create custom clientDefs file to let Espo know that the above view class should be invoked when rendering a list of your entity

                custom/Espo/Custom/Resources/metadata/clientDefs/your-entity-name.json

                Code:
                {
                "recordViews": {
                "list": "custom:views/your-entity-name/record/list"
                }
                }
                This this post to understand how it works : https://forum.espocrm.com/forum/deve...8723#post78723

                Good luck

              • rem4332
                rem4332 commented
                Editing a comment
                rabii thanks for the hint but i cant replace crm-plus, this is my modul for inline edit.

            • #8
              To get a better insight:

              - did you rebuilt?
              - cleared cache (also browser cache)?
              - anything in your logfile (data/logs)?

              And it seems, you did not put the right code in here, like provided under https://forum.espocrm.com/forum/deve...8723#post78723
              Last edited by shalmaxb; 02-14-2022, 05:20 PM.

              Comment


              • #9
                Good Morning, thanks for answer,

                yes i do rebuilt
                yes cache all clear

                logfile i will check.

                Okay i found the problem, i cant use this nice feature at inline Edit tabel

                Comment


                • #10
                  When i use it at the Standard Entity is all okay.

                  Another Idea was add the Inline Tabel the overflow option to vertically scrollable
                  but Espo scale too much and display not all fields.

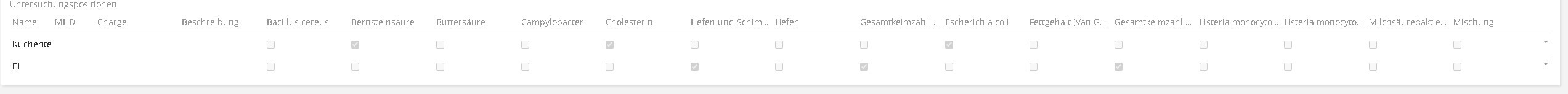

                  Original

                  Click image for larger version  Name:	Screenshot 2022-02-15 144938.jpg Views:	0 Size:	46.4 KB ID:	78762

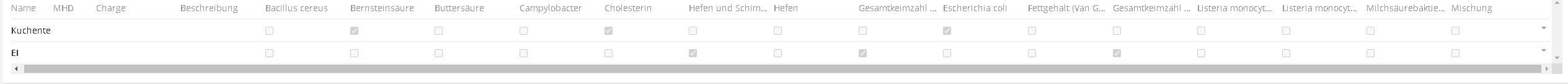

                  with CCS overflow

                  Click image for larger version  Name:	Screenshot 2022-02-15 145245.jpg Views:	0 Size:	48.7 KB ID:	78763

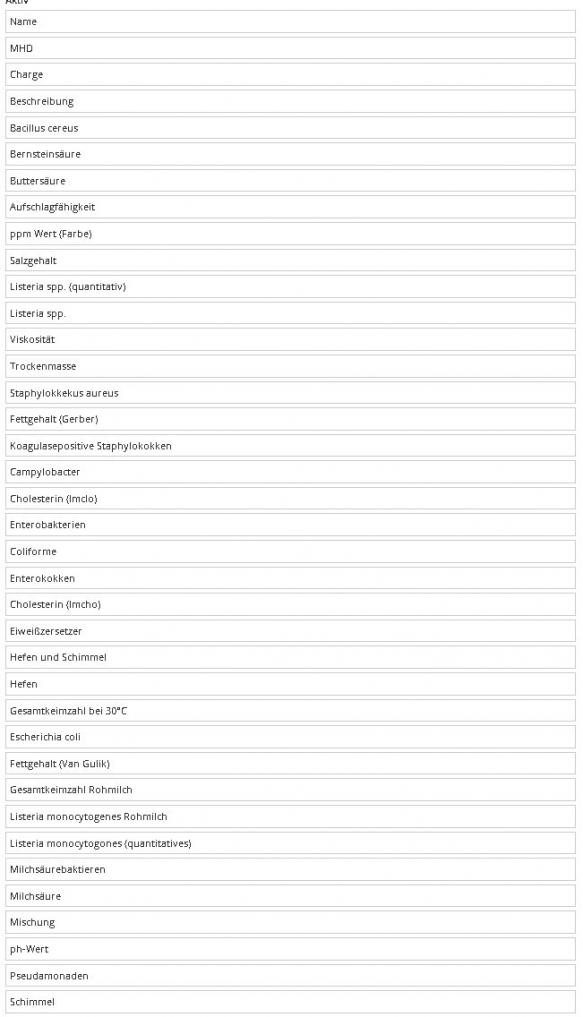

                  The Fields

                  Click image for larger version  Name:	Screenshot 2022-02-15 145348.jpg Views:	0 Size:	68.3 KB ID:	78764

                  We can see the Fieldlist is longer than the listview, Ideas ?

                  Thanks a lot
                  Last edited by rem4332; 02-15-2022, 02:22 PM.

                  Comment


                  • #11
                    My first guess: I think you should use an multi enum field for so many values. Depending on the Layout of your list view, you could have the values in one wide column.

                    Or multi checkbox field.
                    Last edited by shalmaxb; 02-15-2022, 11:10 PM.

                    Comment


                    • #12
                      Check this post https://forum.espocrm.com/forum/deve...8772#post78772 implementing the transposing function by clicking on a button at the top of the list display, similar to the kanban button.

                      Using this example, modify the script in step 1 to extend the class from your extension view class "crm-plus:views/fields/link-multiple-form/inline-list" instead of extending from "views/record/list" as in the example, to preserve all current functionality in your extension and see if that works.

                      Comment
