additionalLayouts for custom entity

[rabii]

Hi Folks,

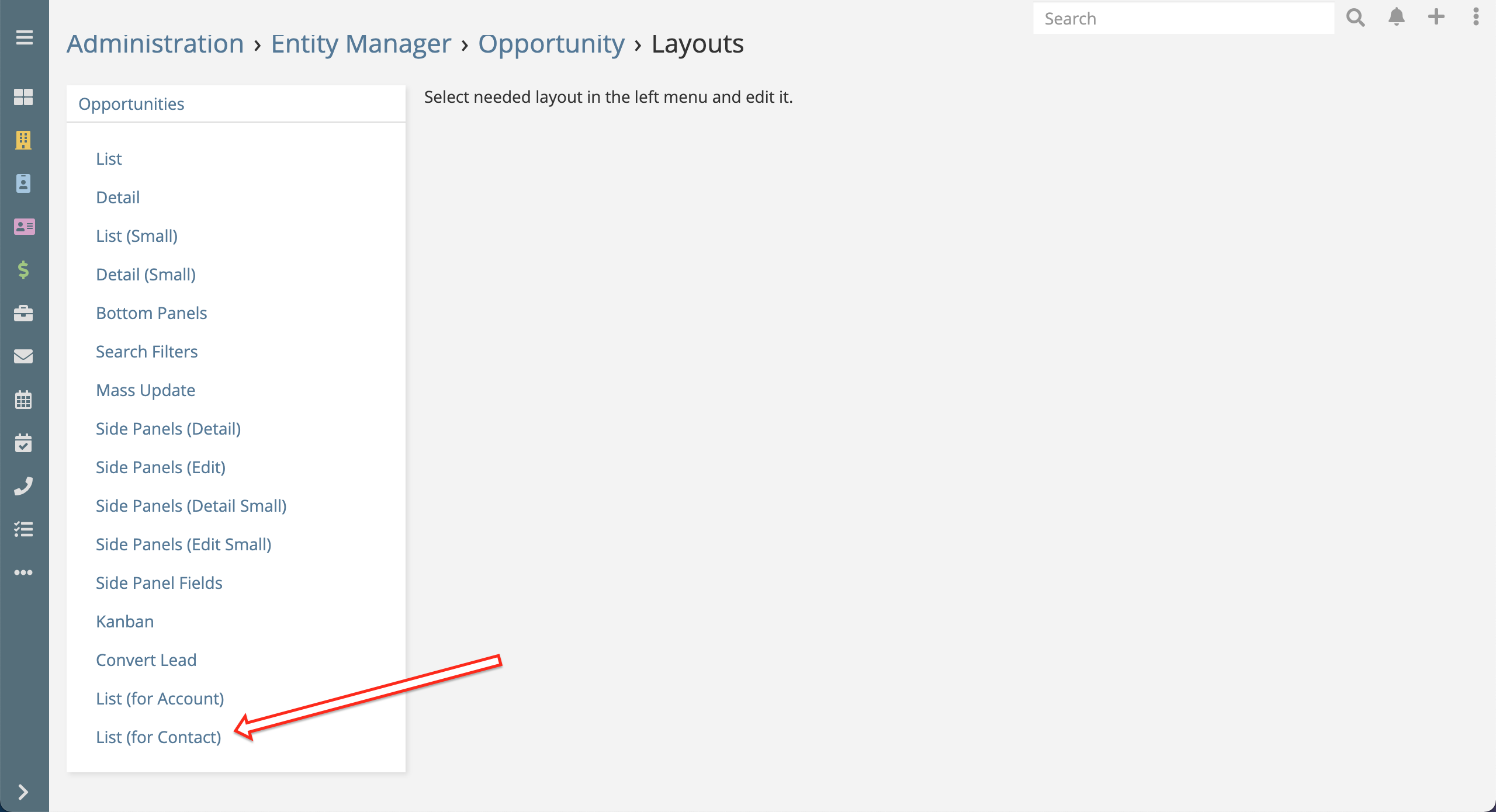

I have a custom entity called (Offer) that has a M:M relationship with contacts and also M:O relationship with contact. Basically it is similar to what is already used in the opportunity contacts functionality, i want to add the a small list layout on the contact which display the offer entity same like (listForContact) layout on the opportunity (see attached screen shot). I have already created a list called (listForContact) on the custom/Espo/Custom/Resources/layouts/offer/listForContact.json and also added additionalLayouts on clientDefs of my Offer entity with this code :

"additionalLayouts": {
"detailConvert": {
"listForContact": {
"type": "listSmall"
}
},

But it is not shown on my offer entity layout.

How can i add such additionalLayout please.

Many thanks

[criffoh]

Consider that you need show a EntityB custom small list in EntityA.
You can follow next steps

1. Create file custom/Espo/custom/Resources/layouts/EntityB/listForAEntity.json and write the following:

[ {"name":"name"} ]

2. Modify file custom/Espo/custom/Resources/metadata/clientDefs/EntityB.json adding the following:

"additionalLayouts": { "listForAEntity": { "type": "listSmall" } }

3. Modify file custom/Espo/custom/Resources/metadata/clientDefs/EntityA.json adding the following:

"relationshipPanels": { "relationAlias":{ "layout":"listForAEntity" } }

4. Now you can custom visible fields on EntityB layout edition.

[rabii]

thanks i have already find out the solution, in fact i have done it before but forgot.

thanks for your help
