  • Print-to-PDF challenges. Who could help me with any of these three?

    We use the print-to-pdf function to create reports with some tables with data. I keep running in to a couple of challenges and i hope someone can point me in the right direction.

    1. Images are uploaded and used in the PDF without resizing

    Users upload images that are used in the report. But if they upload a 5MB image, there will be a 5MB image in the PDF. Is there any way to use the thumbnails or compress the images in any way?

    2. Images in EspoCRM are automatically corrected in orientation, they are not in the PDF

    If a user uploads a image that was taken upside down or sideways, EspoCRM corrects this and shows the images normally. If we generate a PDF, the orientation is taken from the image and the image shows sideways of upside down. Is there any way to force the PDF engine to do this as well?

    3. I cant figure out how to define cell background color in tables in DOMPDF (ANSWERED)

    While i got this to works in Tcpdf perfectly fine, i tried many times and failed with DOMpdf. Any help on this? I want to switch to DOMPDF so i can generate PDF's for multiple records at ones.
    Last edited by mbrands; 08-20-2024, 11:15 AM.

  • #2
    No problem with the table cell background. v8.3.

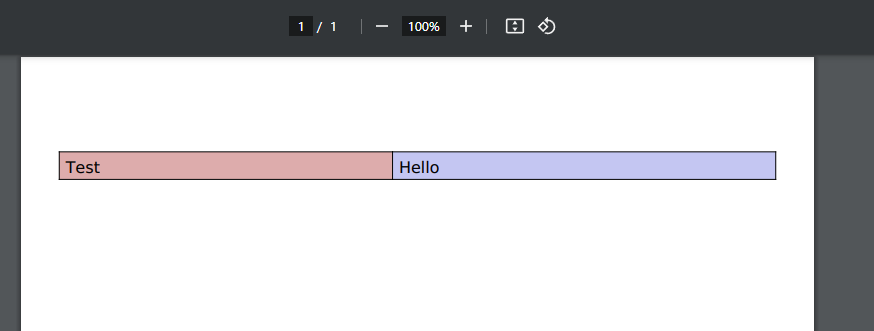

    PDF:

    Click image for larger version

Name:	image.png
Views:	126
Size:	6.0 KB
ID:	109512

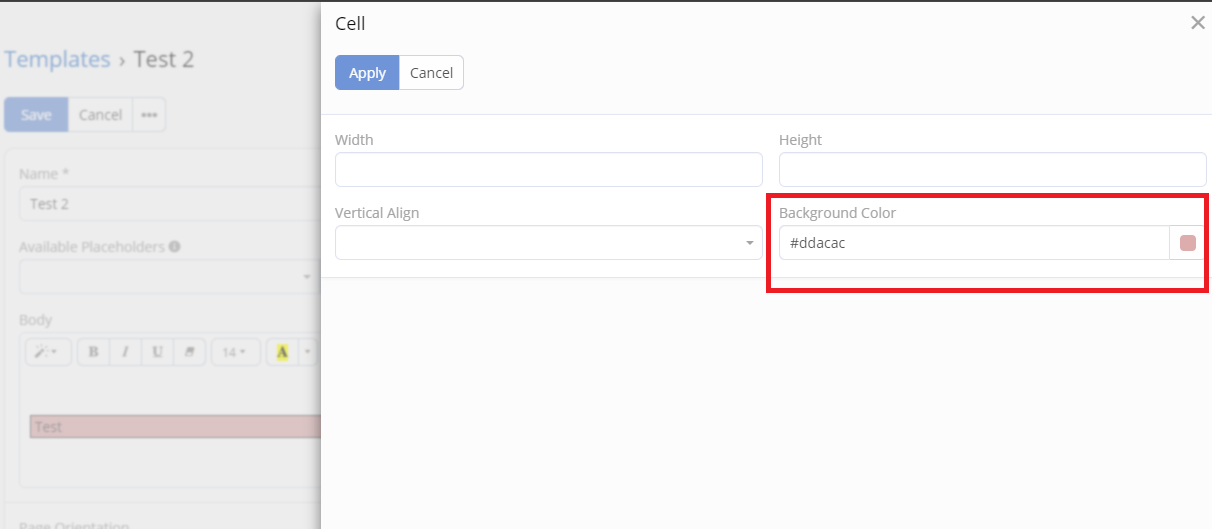

    Template:​

    Click image for larger version

Name:	image.png
Views:	90
Size:	36.8 KB
ID:	109513

    Comment


    • mbrands
      mbrands commented
      Editing a comment
      Is it possible that it only works with rgb color? Because i used html colornames and hex codes in my templates

  • #3

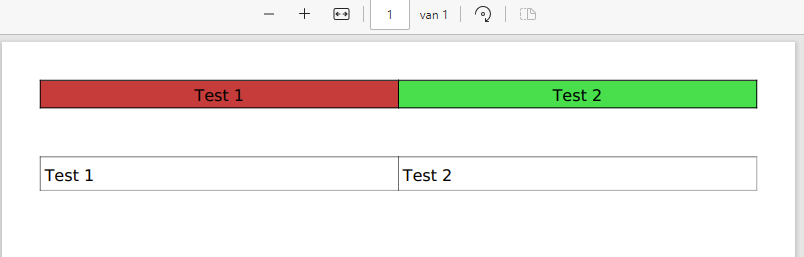

    Click image for larger version

Name:	image.png
Views:	98
Size:	28.7 KB
ID:	109518

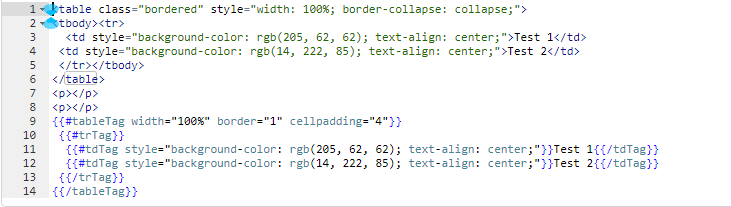

    Click image for larger version

Name:	image.png
Views:	82
Size:	7.8 KB
ID:	109519
    I found out the tableTag doesnt work with styling

    Comment


    • #4
      tableTag trTag and tdTag are not recommended anymore. They have never supported 'style'.
      Last edited by yuri; 08-20-2024, 02:51 PM.

      Comment


      • #5
        Bump? Anyone a lead on the image issue's (rotation and size)?
