Cannot use field with type checklist in flowchart conditions

[armen]

Seems i cannot use field type checklist in flowchart conditions,
i simple don't see any checklist type field in add condition window input to choose.

[dimyy]

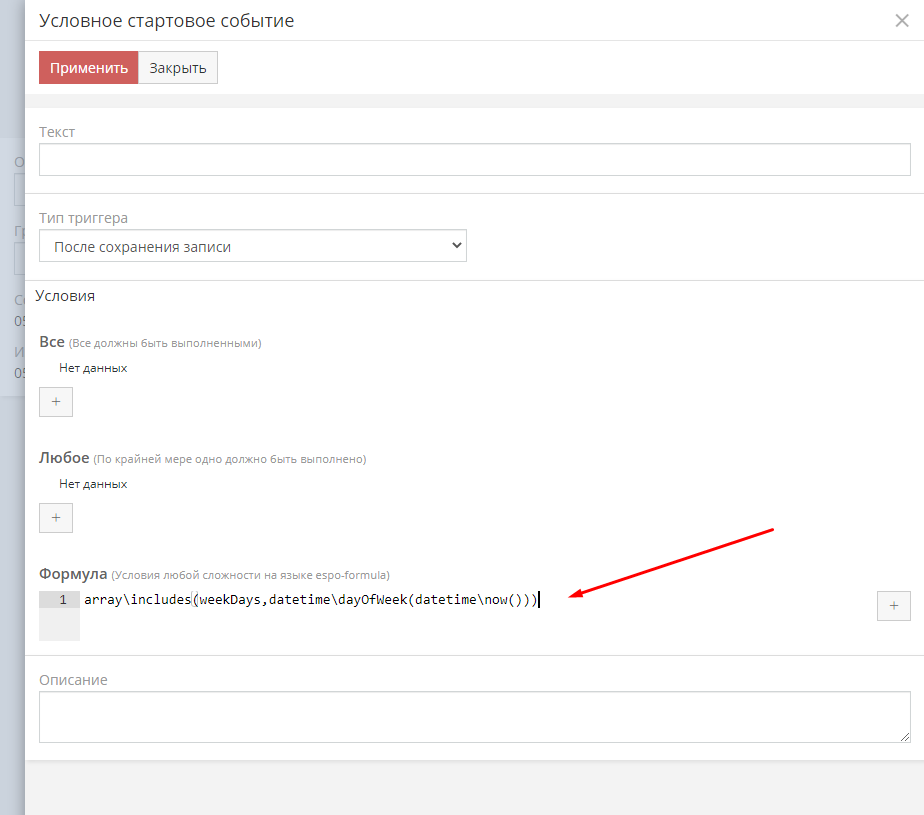

For the checklist you can use array\includes()

Condition example:

array\includes(weekDays,datetime\dayOfWeek(datetime\now()))

[armen]

For the checklist you can use array\includes()

Condition example:

array\includes(weekDays,datetime\dayOfWeek(datetime\now()))

Hi thanks for quick replay,

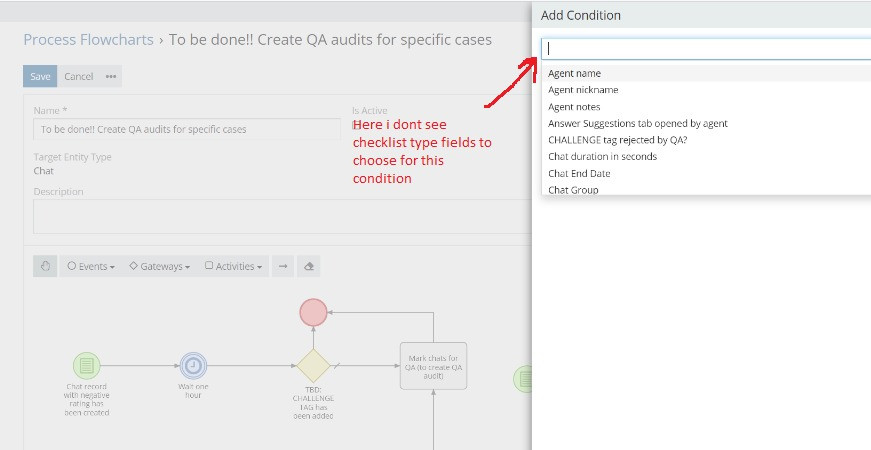

Actually i need to use checklist type field in Flowcharts - > Conditional Start Event -> add condition selectbox (see screenshot) not via code as you suggested.

Can you help me with this ?

[dimyy]

Don't touch "add condition". You should use the "formula"

[armen]

Don't touch "add condition". You should use the "formula"

Ok i see, i did as you suggested just I'm new to formulas
and i don't understand how to return from formula some positive result so that
"Conditional Start Event" will start

---
doAction = 0;

// here i want to check if tags( it is checklist type field) is empty
ifThen(tags=="", doAction=1)

// here i want to check if tags contain some test option
ifThen(array\includes(tags, 'test'), doAction=1)

//how to retrun doAction ?? so that "Conditional Start Event" will be triggered ?
--

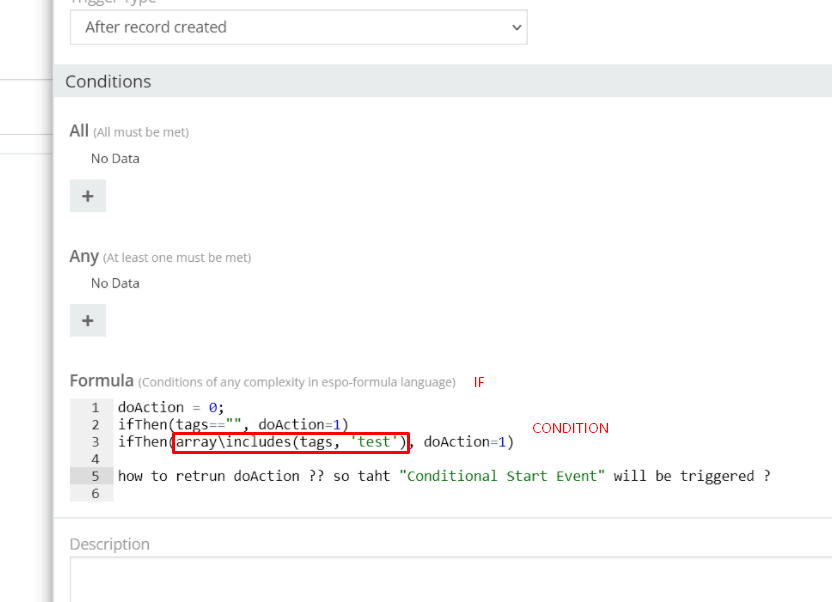

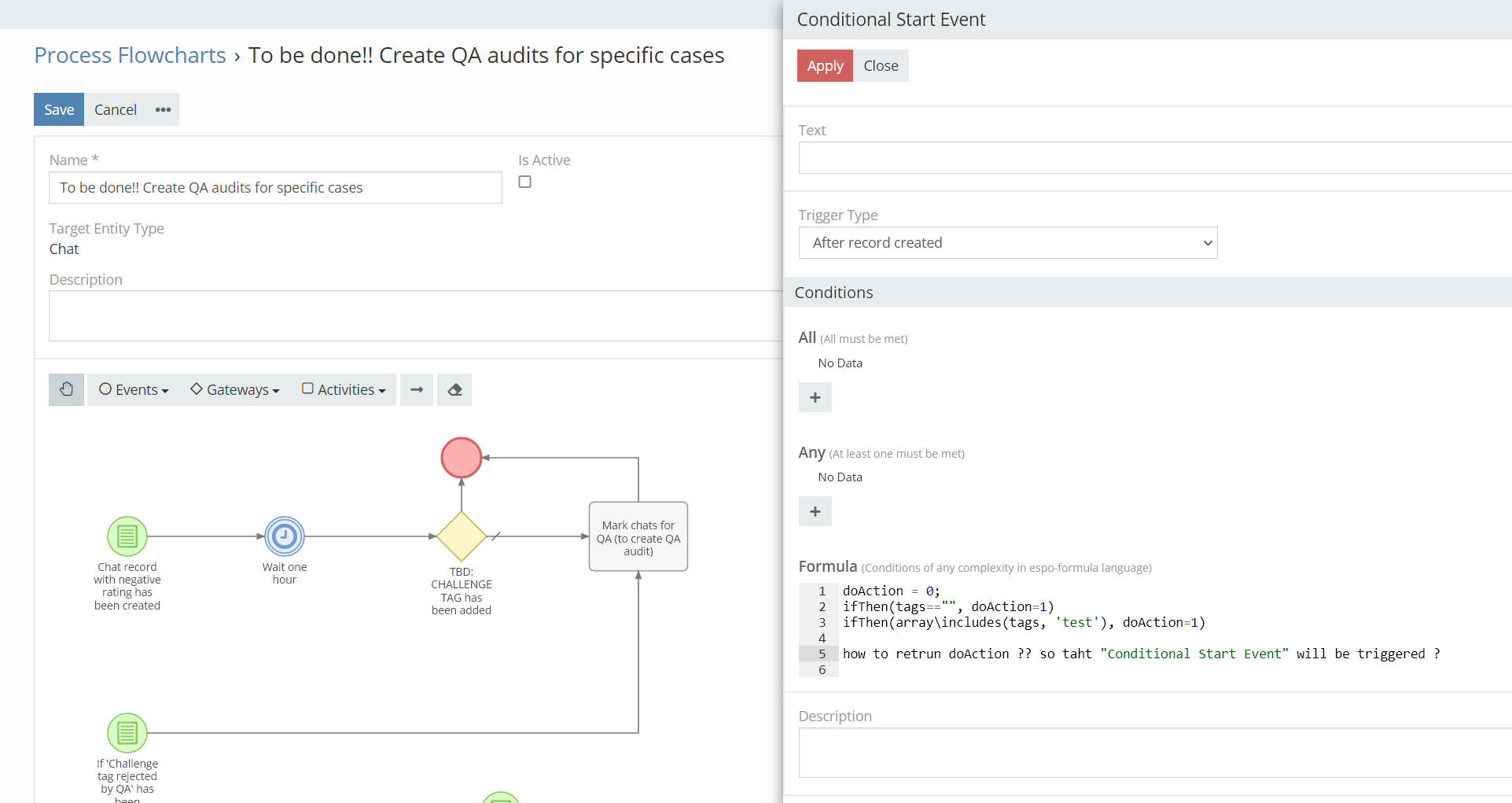

you can see also pic

[dimyy]

Formula interpretation (screenshot)

Condition:

array\includes(tags, 'test')

without semicolon

[armen]

Ok thanks it working.

And is there anyway to write multiple tags check at once ( multiple conditions if one of them is true then start ) ?

[dimyy]

array\includes(tags, 'test') || array\includes(tags, 'test2') || array\includes(tags, 'test3')

[armen]

thanks !
